Home > Collections > Spec > Spec LED 30" Bath Vanity
Spec

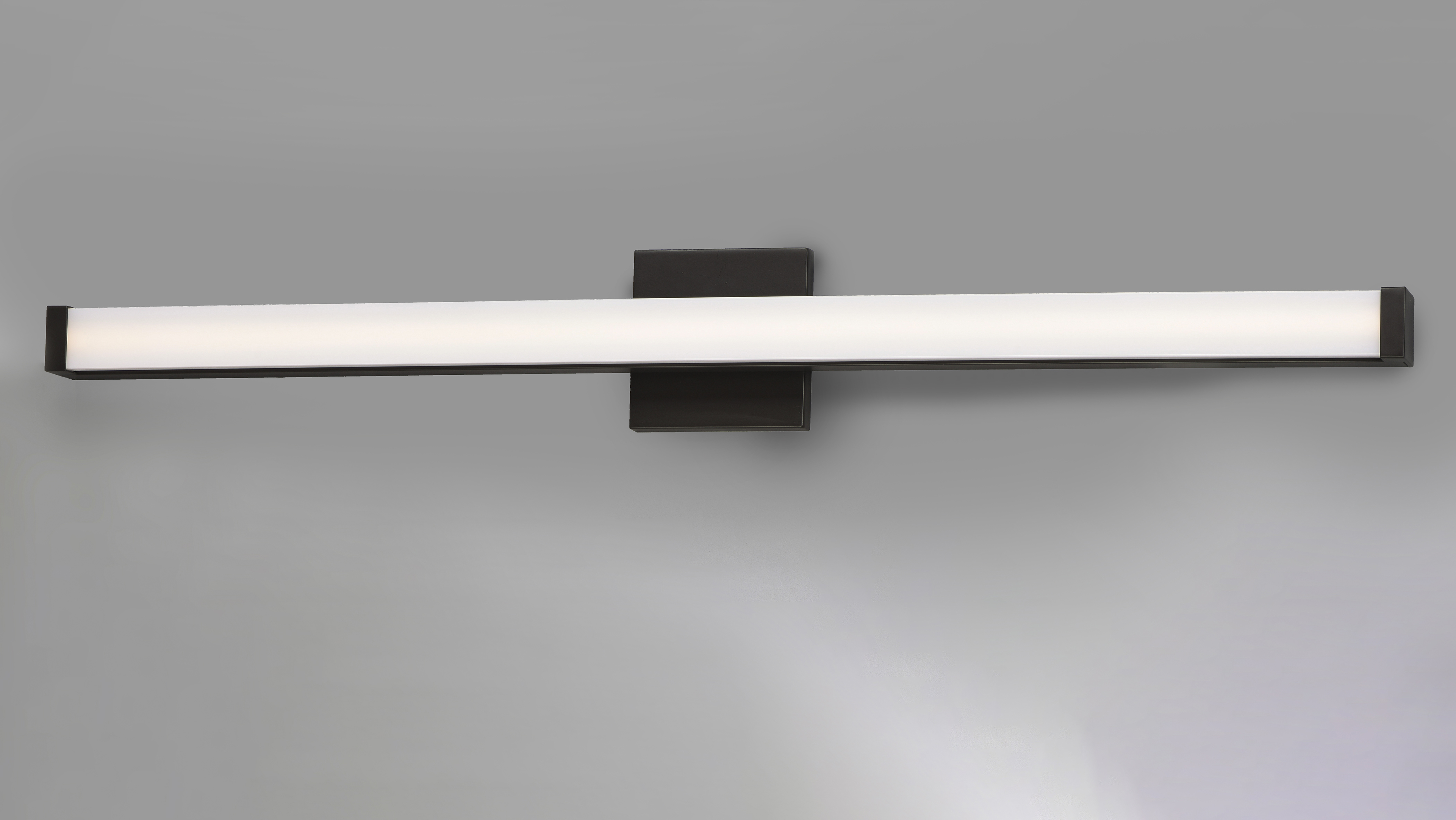

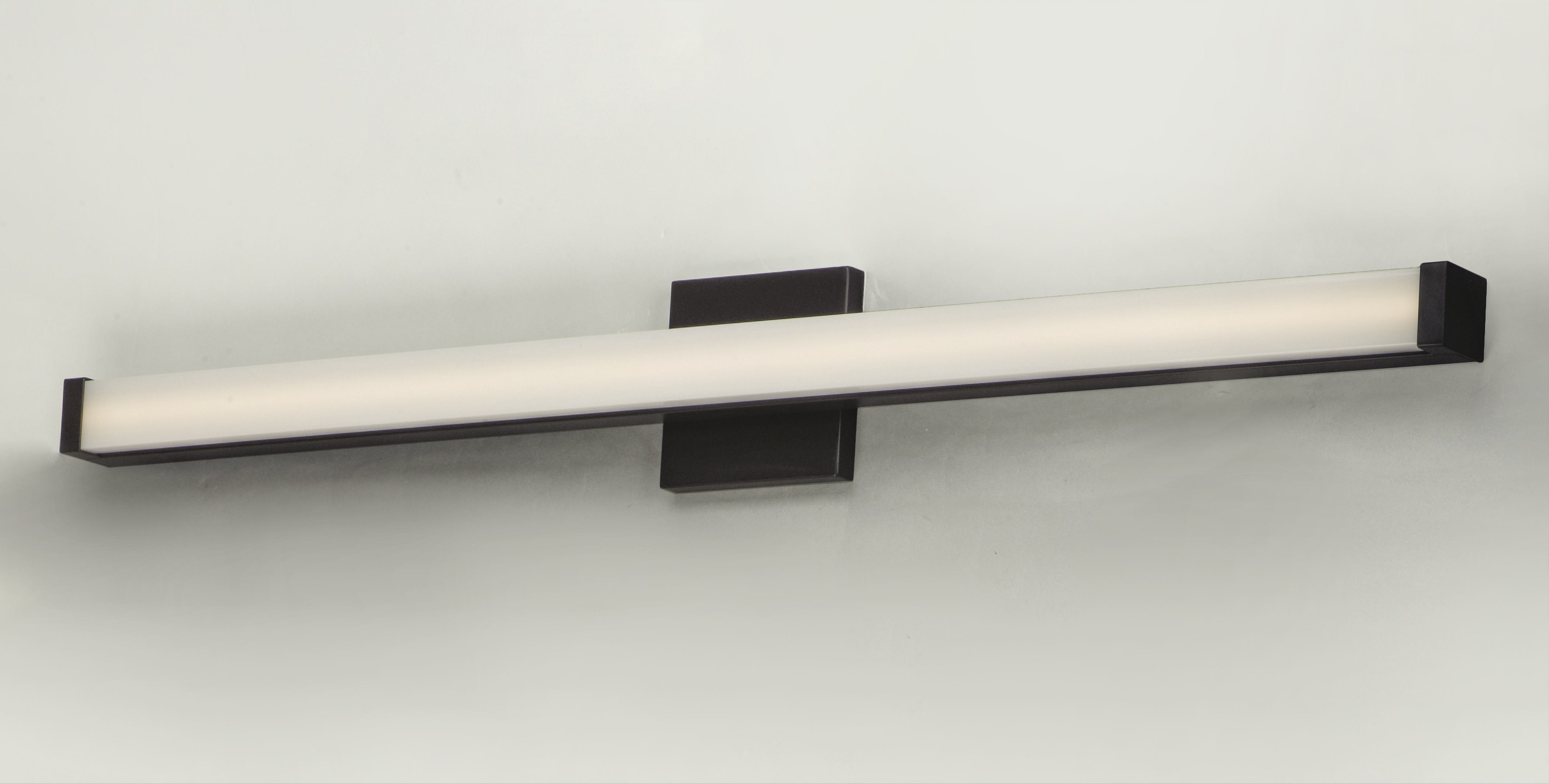

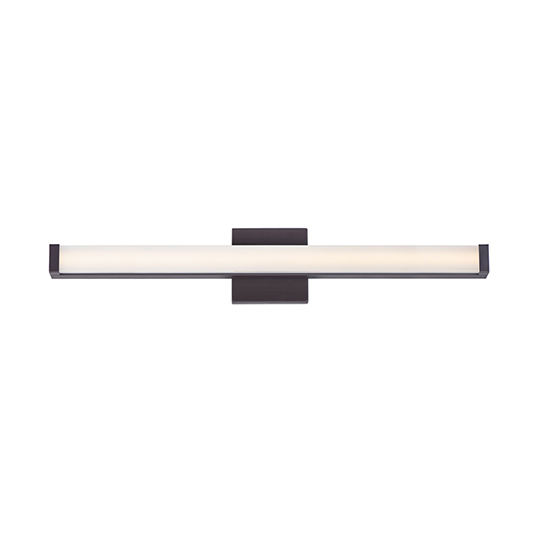

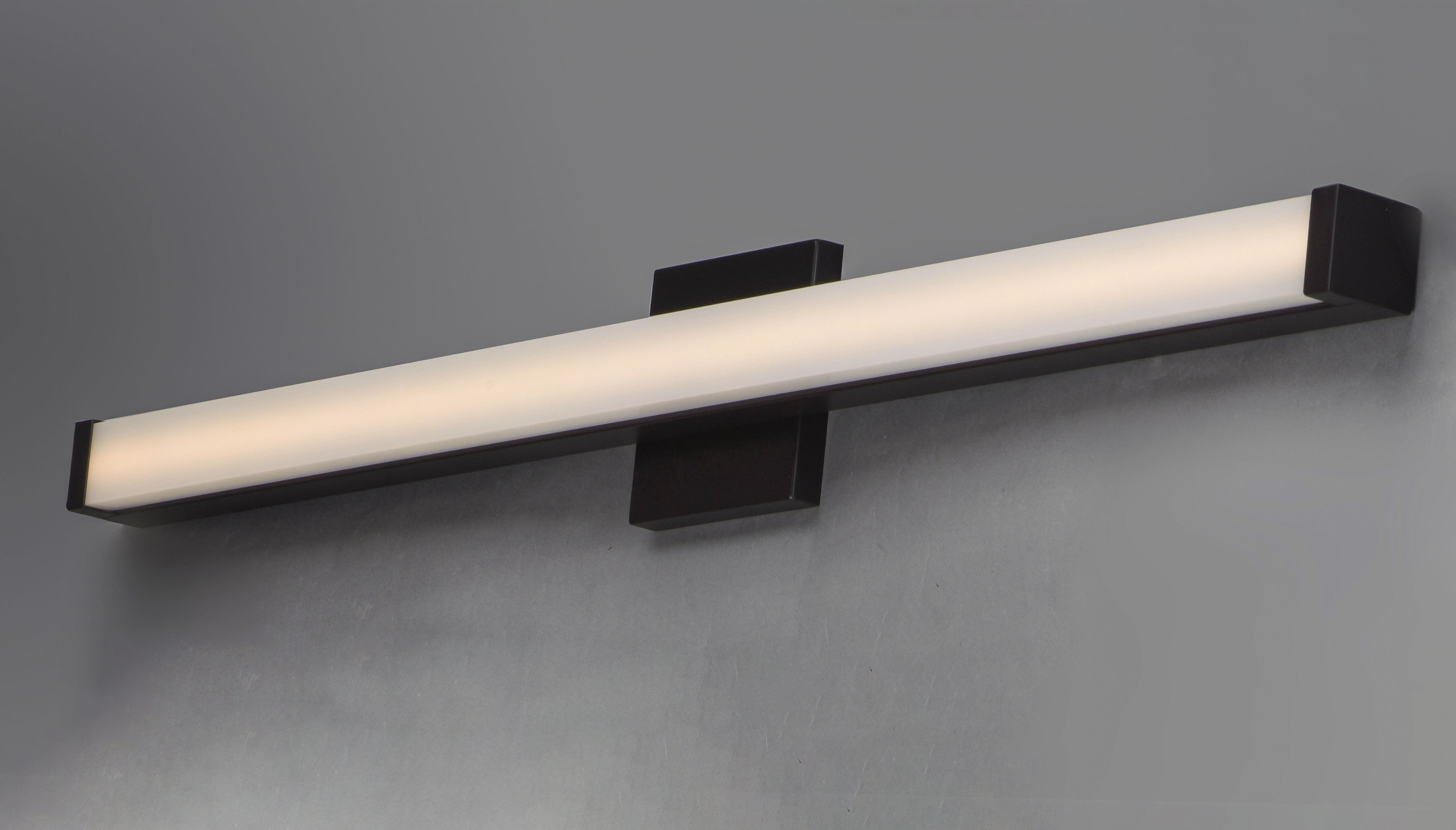

LED 30" Bath Vanity
Spec
Model: SM562004BZ
Sizing: W30" x H1.75"
Finish: Bronze
Shade:
Price: $104.00
This minimalistic contemporary approach to LED vanity lighting will be the standard for both residential and commercial applications. The light engine features a high quality dimmable driver with multi volt input and high color rendering LEDs for the ultimate vanity lighting.


OPTIONS


Spec
Spec
SM562004BZ
LED 30" Bath Vanity
Spec
Lamping
Number of Bulbs: 1
Light Type: LED
Bulb Type: PCB Integrated An average rating, in hours, indicating when 50% of a large group of lamps have failed, when operated at nominal lamp voltage and current; manufacturers use 3 hours per start for fluorescent lamps and 10 hours per start for HID lamps when performing lamp life testing procedures; every lamp type has a unique mortality curve that depicts its average rated life. For Photo-Optic specialty lamps, average rated life refers to the operating period after which on statistical average, 50% of the lamps will perform within their specified values.
Bulb Max Wattage: 20
Fixture Max Wattage: 20
Install Up/Down: Omni
Rated Life: 50,000 Hours An average rating, in hours, indicating when 50% of a large group of lamps have failed, when operated at nominal lamp voltage and current; manufacturers use 3 hours per start for fluorescent lamps and 10 hours per start for HID lamps when performing lamp life testing procedures; every lamp type has a unique mortality curve that depicts its average rated life. For Photo-Optic specialty lamps, average rated life refers to the operating period after which on statistical average, 50% of the lamps will perform within their specified values.
Delivered Lumens: 1550 A measurement of the power of light emitted from a source. The difference between LED lumen versus lumens from an incandescent or fluorescent source is that all of the lumen output is directed forward as opposed to a bulb where lumens come off the source in all directions. Lumens are lost on the back side of a bulb.
Color Temperature: 3000 K This is a measurement in Kelvin of the color of light a source produces. Higher color temperatures (5,000 K or more) are cool (blueish white) colors; lower color temperatures (2,700–3,000 K) are warm (yellowish white through red) colors.
Bulb(s): Integrated
CRI: 90+
Dimmable: Only at 120V with ELV
Input Voltage: 120-277

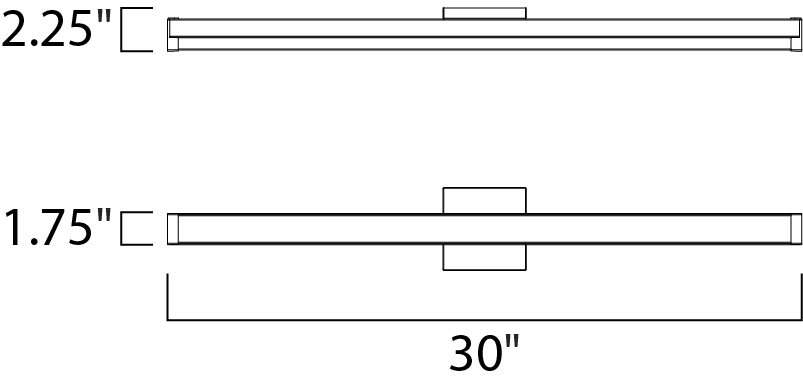

Measurements
Width: 30"
Height: 1.75"
Extension: 2.25"
HCO: 2.4"
BP Width: 4.75"
BP Height: 4.75"
Wire Length: 8"
Hanging Weight: 2.31 lb.
UPS Shippable: Yes Any box shipped via UPS that that is larger than 3 cubic feet in size will be charged shipping costs based on its dimensional weight rather than the actual weight of the package.

Certifications/Other
UL Standard: Damp
ADA Compliant: Yes Click for Additional Information on ADA
Meet California Title 24 Requirements: JA8 Listed Click for Additional Information on Title 24



SM562004
Spec
Spec
Spec LED 30" Bath Vanity
Spec LED 30" Bath Vanity
Spec LED 30" Bath Vanity
Spec LED 30" Bath Vanity
Spec LED 30" Bath Vanity
Spec
