Home > Collections > Fizz IV > Fizz IV 3-Light LED Pendant
Fizz IV

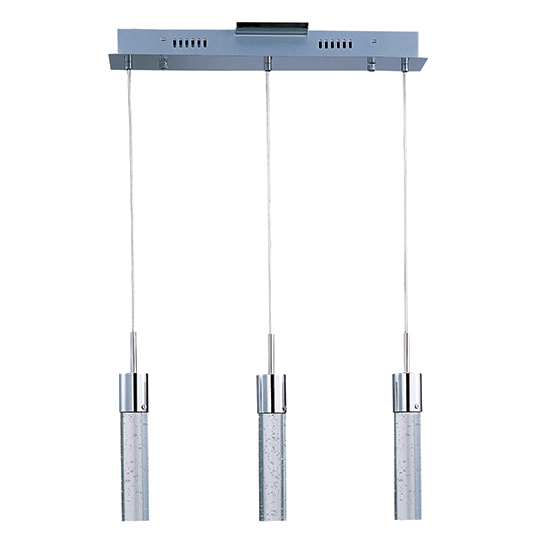

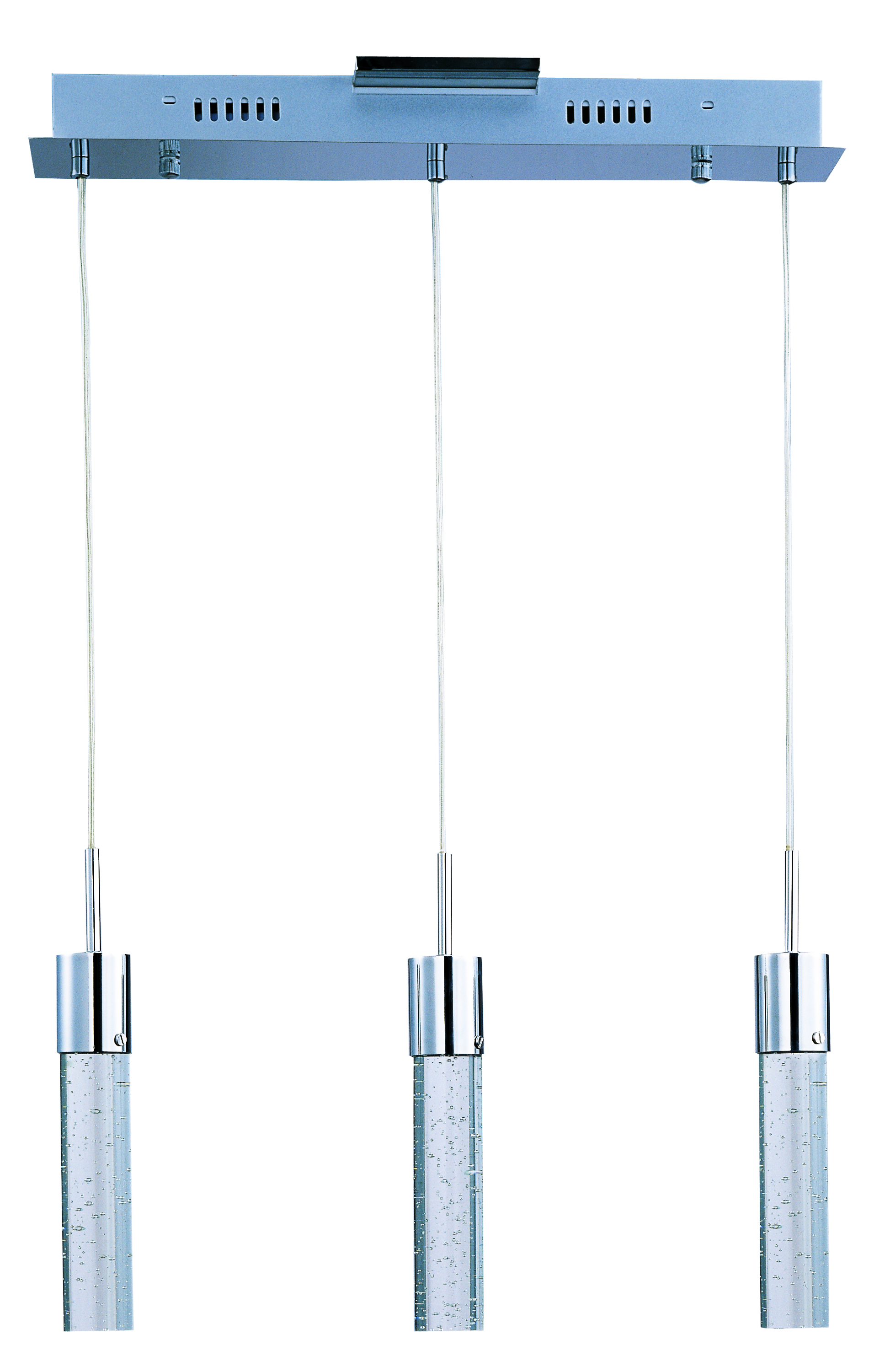

3-Light LED Pendant
Fizz IV
Model: SM252773PC
Sizing: L21" x W4.75" x H12.5"
Finish: Polished Chrome
Shade: Bubble
Price: $384.00
Introducing the new and improved version of our previous Fizz II. The new version features a ceramic base LED from LG. With 30% greater light output and dimming capability, the new Fizz IV sets the standard in contemporary illumination.


Fizz IV
Fizz IV
SM252773PC
3-Light LED Pendant
Fizz IV
Lamping
Number of Bulbs: 3
Light Type: LED
Bulb Type: PCB Integrated An average rating, in hours, indicating when 50% of a large group of lamps have failed, when operated at nominal lamp voltage and current; manufacturers use 3 hours per start for fluorescent lamps and 10 hours per start for HID lamps when performing lamp life testing procedures; every lamp type has a unique mortality curve that depicts its average rated life. For Photo-Optic specialty lamps, average rated life refers to the operating period after which on statistical average, 50% of the lamps will perform within their specified values.
Bulb Max Wattage: 7.5
Fixture Max Wattage: 22.5
Rated Life: 40,000 Hours An average rating, in hours, indicating when 50% of a large group of lamps have failed, when operated at nominal lamp voltage and current; manufacturers use 3 hours per start for fluorescent lamps and 10 hours per start for HID lamps when performing lamp life testing procedures; every lamp type has a unique mortality curve that depicts its average rated life. For Photo-Optic specialty lamps, average rated life refers to the operating period after which on statistical average, 50% of the lamps will perform within their specified values.
Delivered Lumens: 710 A measurement of the power of light emitted from a source. The difference between LED lumen versus lumens from an incandescent or fluorescent source is that all of the lumen output is directed forward as opposed to a bulb where lumens come off the source in all directions. Lumens are lost on the back side of a bulb.
Color Temperature: 3000 K This is a measurement in Kelvin of the color of light a source produces. Higher color temperatures (5,000 K or more) are cool (blueish white) colors; lower color temperatures (2,700–3,000 K) are warm (yellowish white through red) colors.
Bulb(s): Integrated
Dimmable: Triac CL
Input Voltage: 120

Measurements
Width: 4.75"
Height: 12.5"
Length: 21"
Max Overall Height: 132"
Min Overall Height: 14"
Wire Length: 120"
Hanging Weight: 8.8 lb.
UPS Shippable: Yes Any box shipped via UPS that that is larger than 3 cubic feet in size will be charged shipping costs based on its dimensional weight rather than the actual weight of the package.
Canopy Width: 1.8"
Canopy Height: 1.5"
Canopy Length: 18.5"

Certifications/Other
UL Standard: Dry
Dark Sky: N
Energy Star: No Click for Additional Information on ENERGY STAR
Meet California Title 24 Requirements: N Click for Additional Information on Title 24



SM252773
Fizz IV
Fizz IV
Fizz IV 3-Light LED Pendant
Fizz IV 3-Light LED Pendant
Fizz IV 3-Light LED Pendant
Fizz IV 3-Light LED Pendant
Fizz IV 3-Light LED Pendant
Fizz IV


Downloads
Specification Sheet DOWNLOAD
Product Image
Convert Brochure
Diverse Brochure
Parts and Accessories
Schematic Diagram
