Home > Signatures > Stream > Stream Single LED Mini Pendant
Stream
SM30001-S-WT

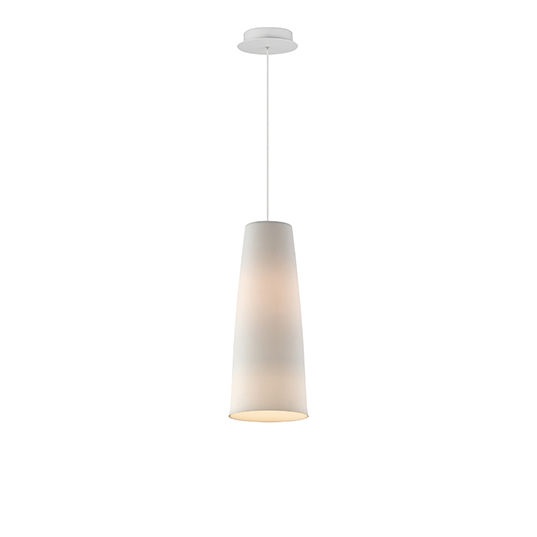

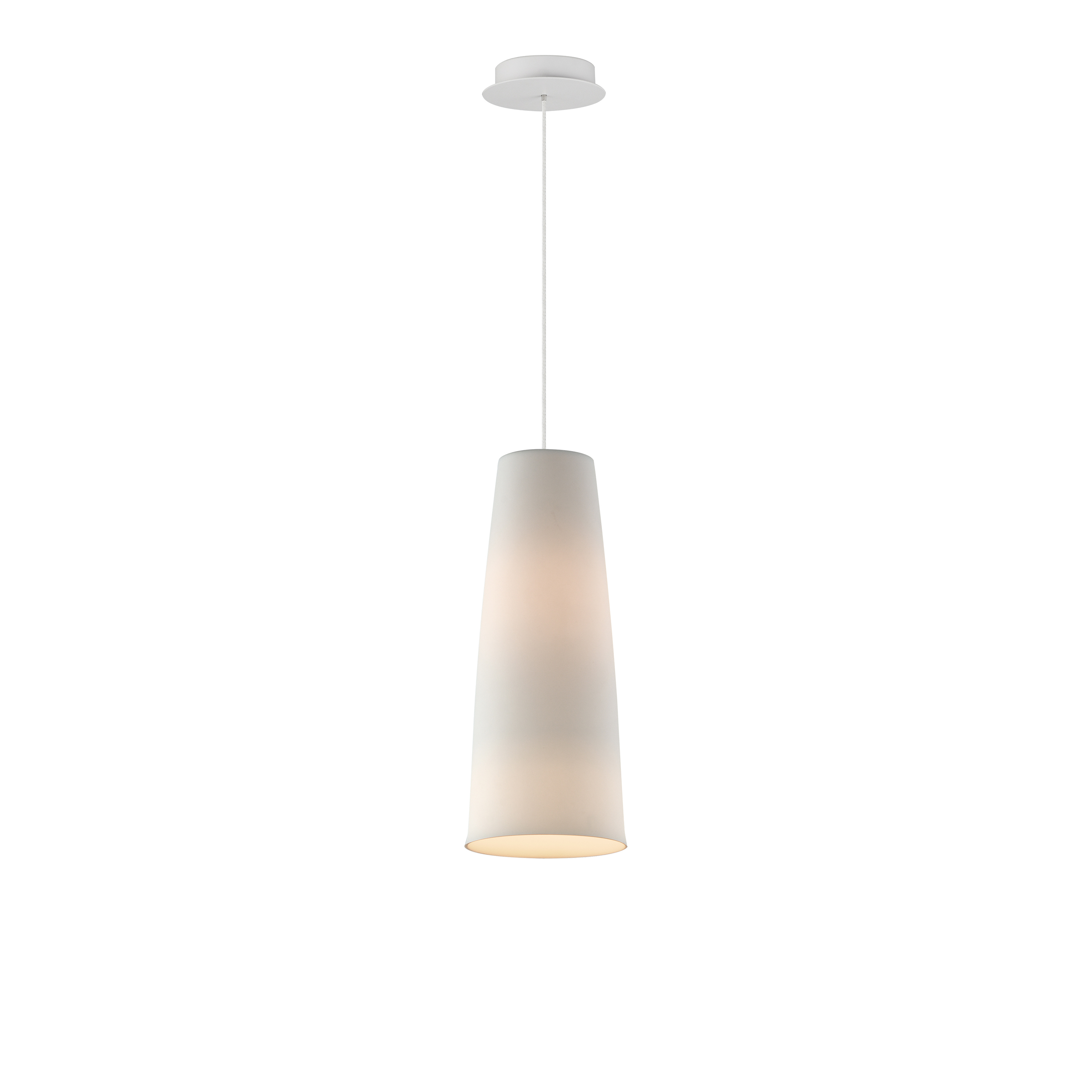

Single LED Mini Pendant
Stream
Lamping
Number of Bulbs: 1
Light Type: LED
Bulb Type: PCB Integrated An average rating, in hours, indicating when 50% of a large group of lamps have failed, when operated at nominal lamp voltage and current; manufacturers use 3 hours per start for fluorescent lamps and 10 hours per start for HID lamps when performing lamp life testing procedures; every lamp type has a unique mortality curve that depicts its average rated life. For Photo-Optic specialty lamps, average rated life refers to the operating period after which on statistical average, 50% of the lamps will perform within their specified values.
Bulb Max Wattage: 9
Fixture Max Wattage: 9
Delivered Lumens: 450 A measurement of the power of light emitted from a source. The difference between LED lumen versus lumens from an incandescent or fluorescent source is that all of the lumen output is directed forward as opposed to a bulb where lumens come off the source in all directions. Lumens are lost on the back side of a bulb.
Color Temperature: 3000 K This is a measurement in Kelvin of the color of light a source produces. Higher color temperatures (5,000 K or more) are cool (blueish white) colors; lower color temperatures (2,700–3,000 K) are warm (yellowish white through red) colors.
Bulb(s): Integrated
CRI: 90
Dimmable: 3-in-1 Triac, ELV, or 0-10V
Input Voltage: 120-277

Measurements
Width: 4"
Height: 9.5"
Length: 4"
Max Overall Height: 140"
Min Overall Height: 11"
Wire Length: 120"
Hanging Weight: 2.2 lb.
UPS Shippable: Yes Any box shipped via UPS that that is larger than 3 cubic feet in size will be charged shipping costs based on its dimensional weight rather than the actual weight of the package.
Canopy Width: 6.25"
Canopy Height: 1.5"
Canopy Length: 6.25"

Certifications/Other



Stream
Stream
Stream


Downloads
Assembly Insturctions - English DOWNLOAD
Specification Sheet DOWNLOAD
IES Photometric DOWNLOAD
Product Image
Infograph Sheet Download Web
Download Rep
Convert Brochure
Diverse Brochure
Parts and Accessories
