Home > Collections > Trilogy > Trilogy LED 44" Outdoor Wall Sconce
Trilogy
LED 44" Outdoor Wall Sconce
Trilogy
Model: SM565689WTBZ
Sizing: W8" x H44"
Finish: Bronze
Shade: White
Price: $398.00
Discontinued
This commercial grade outdoor sconce features a trapezoidal White acrylic lens on an aluminum frame finished in Bronze. A four-position switch, located on the back, allows you to select the color temperature from 2700K to 5000K to meet a wide range of specified color temps.


OPTIONS


Trilogy
Trilogy
SM565689WTBZ
LED 44" Outdoor Wall Sconce
Trilogy
Lamping
Number of Bulbs: 1
Light Type: LED
Bulb Type: PCB Integrated An average rating, in hours, indicating when 50% of a large group of lamps have failed, when operated at nominal lamp voltage and current; manufacturers use 3 hours per start for fluorescent lamps and 10 hours per start for HID lamps when performing lamp life testing procedures; every lamp type has a unique mortality curve that depicts its average rated life. For Photo-Optic specialty lamps, average rated life refers to the operating period after which on statistical average, 50% of the lamps will perform within their specified values.
Bulb Max Wattage: 45
Fixture Max Wattage: 45
Install Up/Down: Omni
Rated Life: 50,000 Hours An average rating, in hours, indicating when 50% of a large group of lamps have failed, when operated at nominal lamp voltage and current; manufacturers use 3 hours per start for fluorescent lamps and 10 hours per start for HID lamps when performing lamp life testing procedures; every lamp type has a unique mortality curve that depicts its average rated life. For Photo-Optic specialty lamps, average rated life refers to the operating period after which on statistical average, 50% of the lamps will perform within their specified values.
Delivered Lumens: 2180 A measurement of the power of light emitted from a source. The difference between LED lumen versus lumens from an incandescent or fluorescent source is that all of the lumen output is directed forward as opposed to a bulb where lumens come off the source in all directions. Lumens are lost on the back side of a bulb.
Color Temperature: 27/30/40/50 K This is a measurement in Kelvin of the color of light a source produces. Higher color temperatures (5,000 K or more) are cool (blueish white) colors; lower color temperatures (2,700–3,000 K) are warm (yellowish white through red) colors.
Bulb(s): Integrated
Photo Cell: N
CRI: 80
Dimmable: ELV or Triac CL
Input Voltage: 120-277

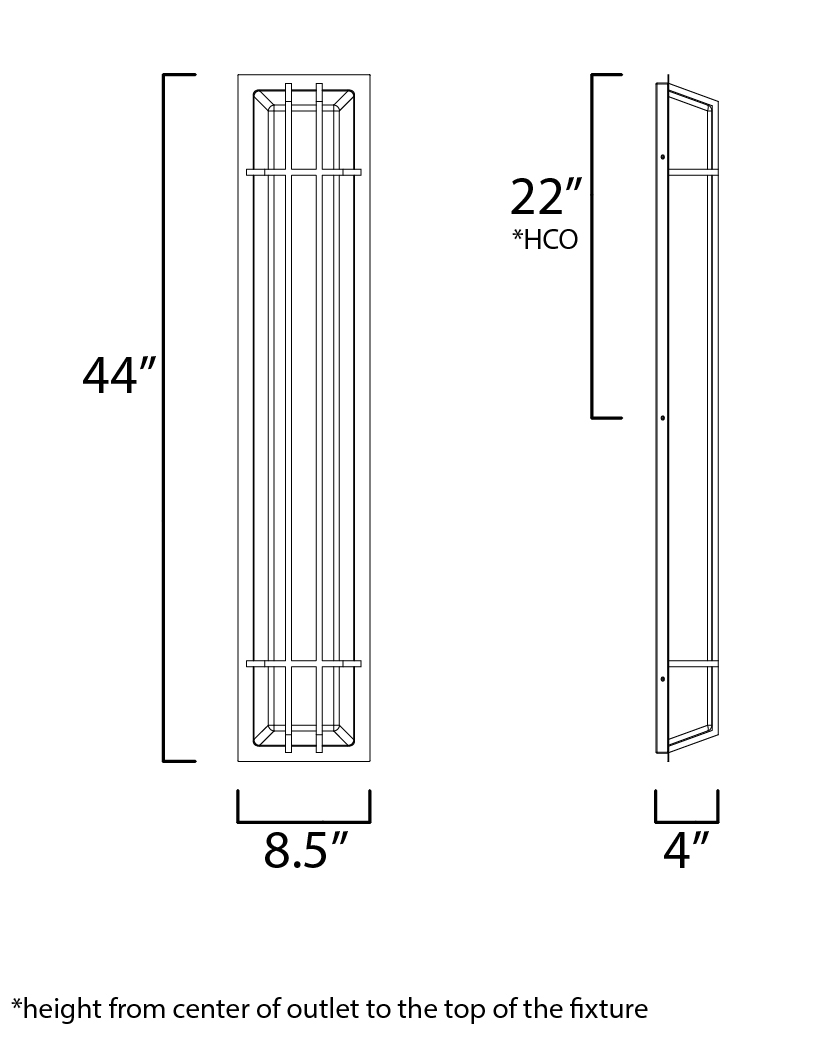

Measurements
Width: 8"
Height: 44"
Extension: 4"
HCO: 22"
BP Width: 7.5"
BP Height: 43"
Wire Length: 8"
Hanging Weight: 16.3 lb.
UPS Shippable: Yes Any box shipped via UPS that that is larger than 3 cubic feet in size will be charged shipping costs based on its dimensional weight rather than the actual weight of the package.

Certifications/Other
UL Standard: Wet
ADA Compliant: Yes Click for Additional Information on ADA
Dark Sky: N
Energy Star: No Click for Additional Information on ENERGY STAR
Meet California Title 24 Requirements: For Outdoor Click for Additional Information on Title 24



SM565689
Trilogy
Trilogy
Trilogy LED 44" Outdoor Wall Sconce
Trilogy LED 44" Outdoor Wall Sconce
Trilogy


Downloads
Specification Sheet DOWNLOAD
Product Image
Convert Brochure
Diverse Brochure
Parts and Accessories
Schematic Diagram
