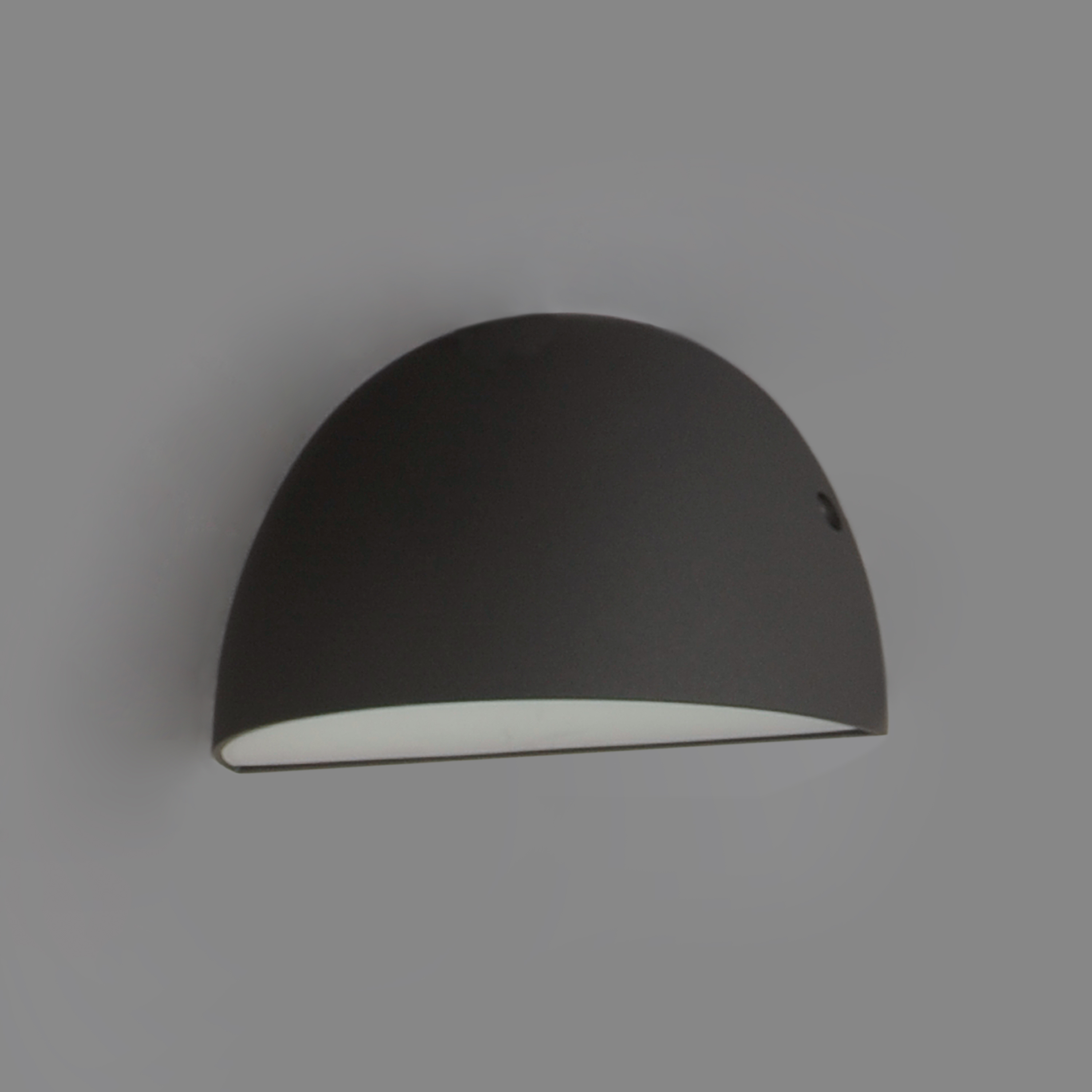

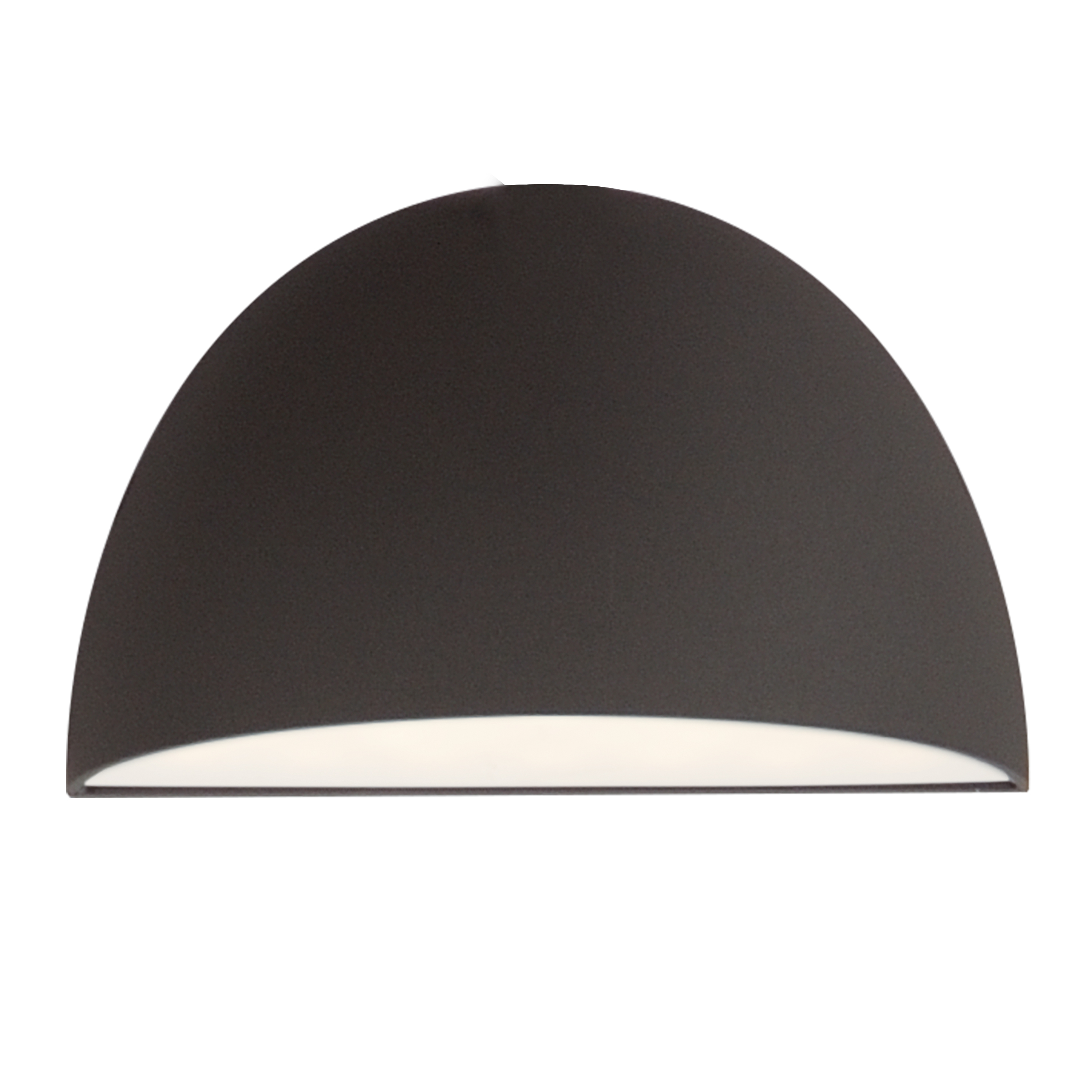

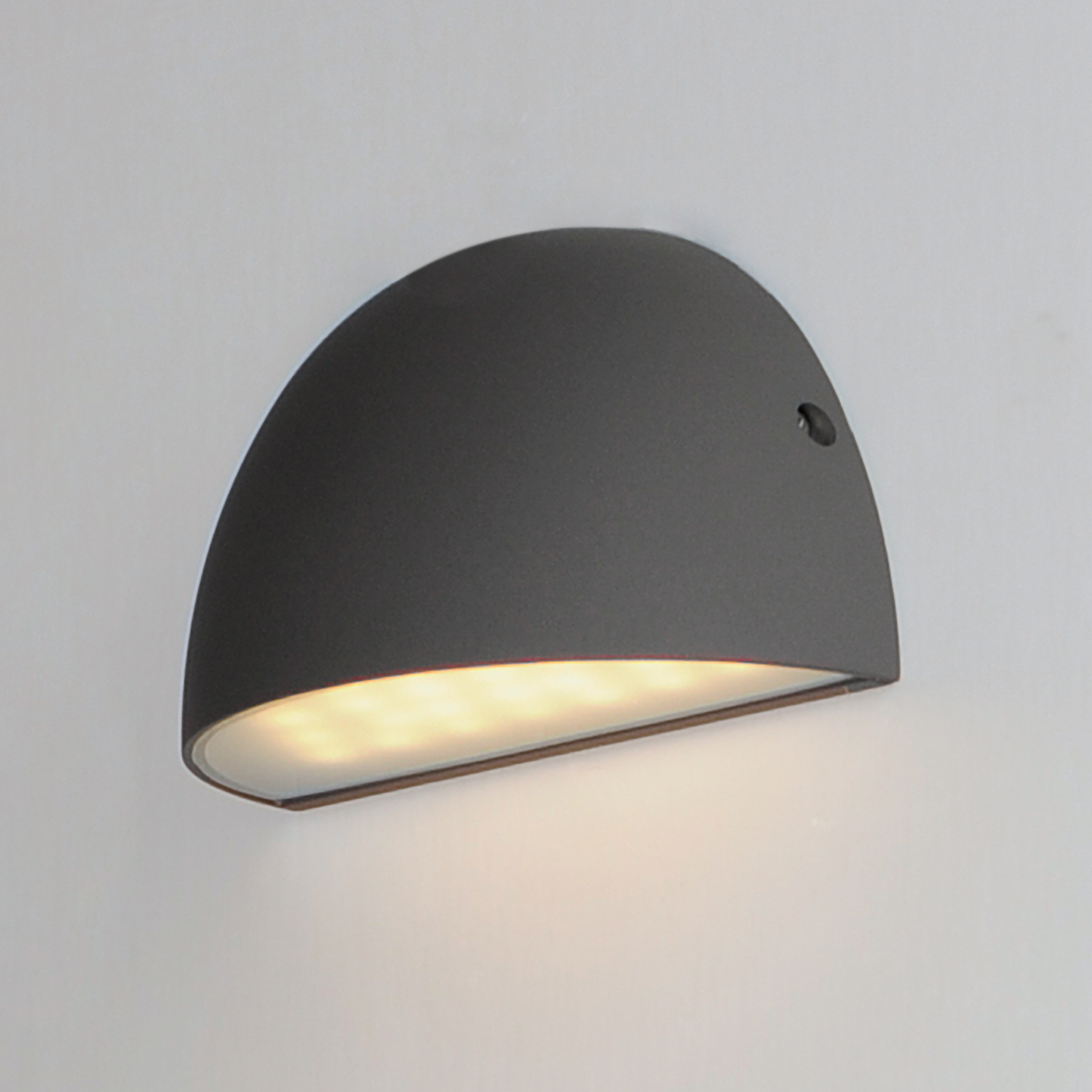

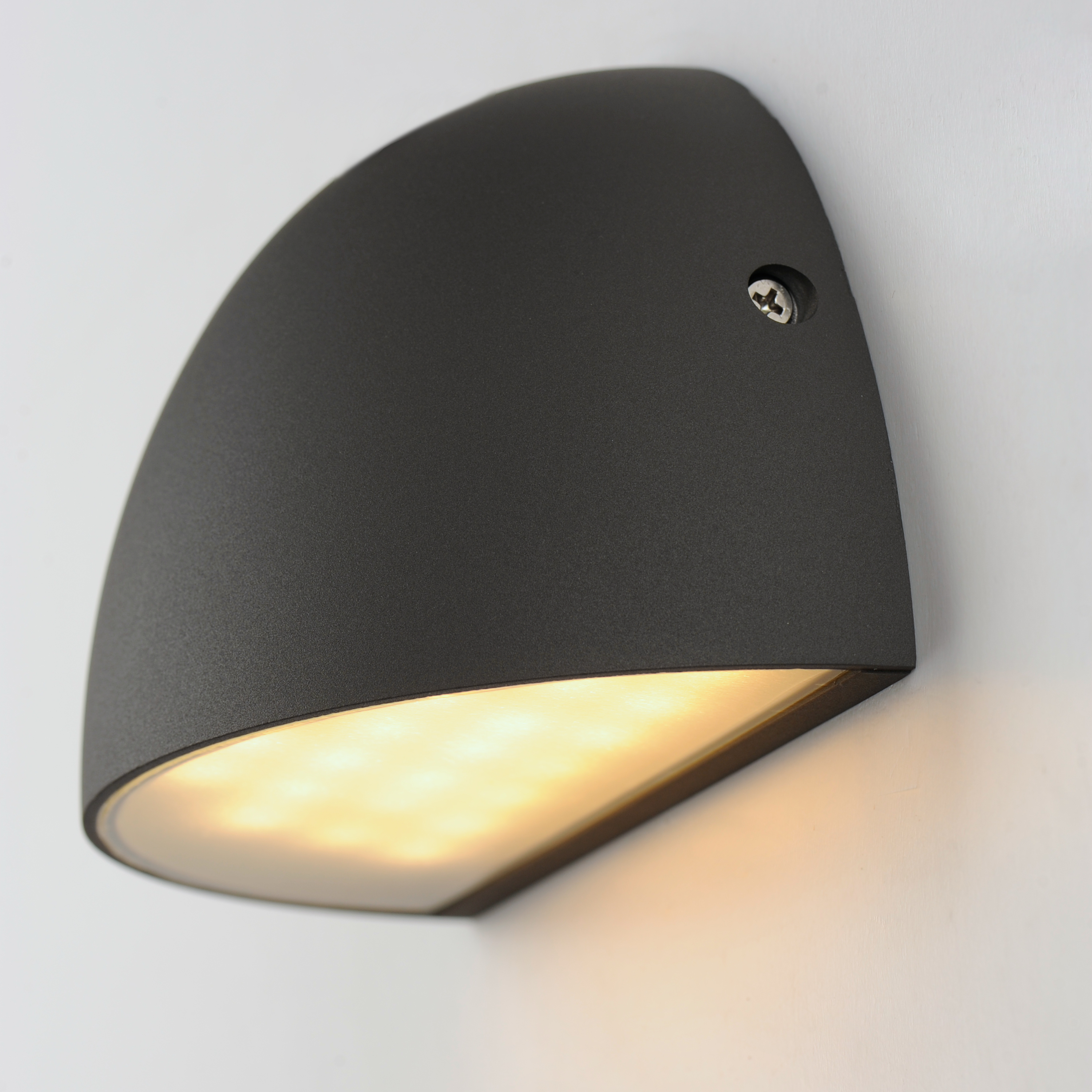

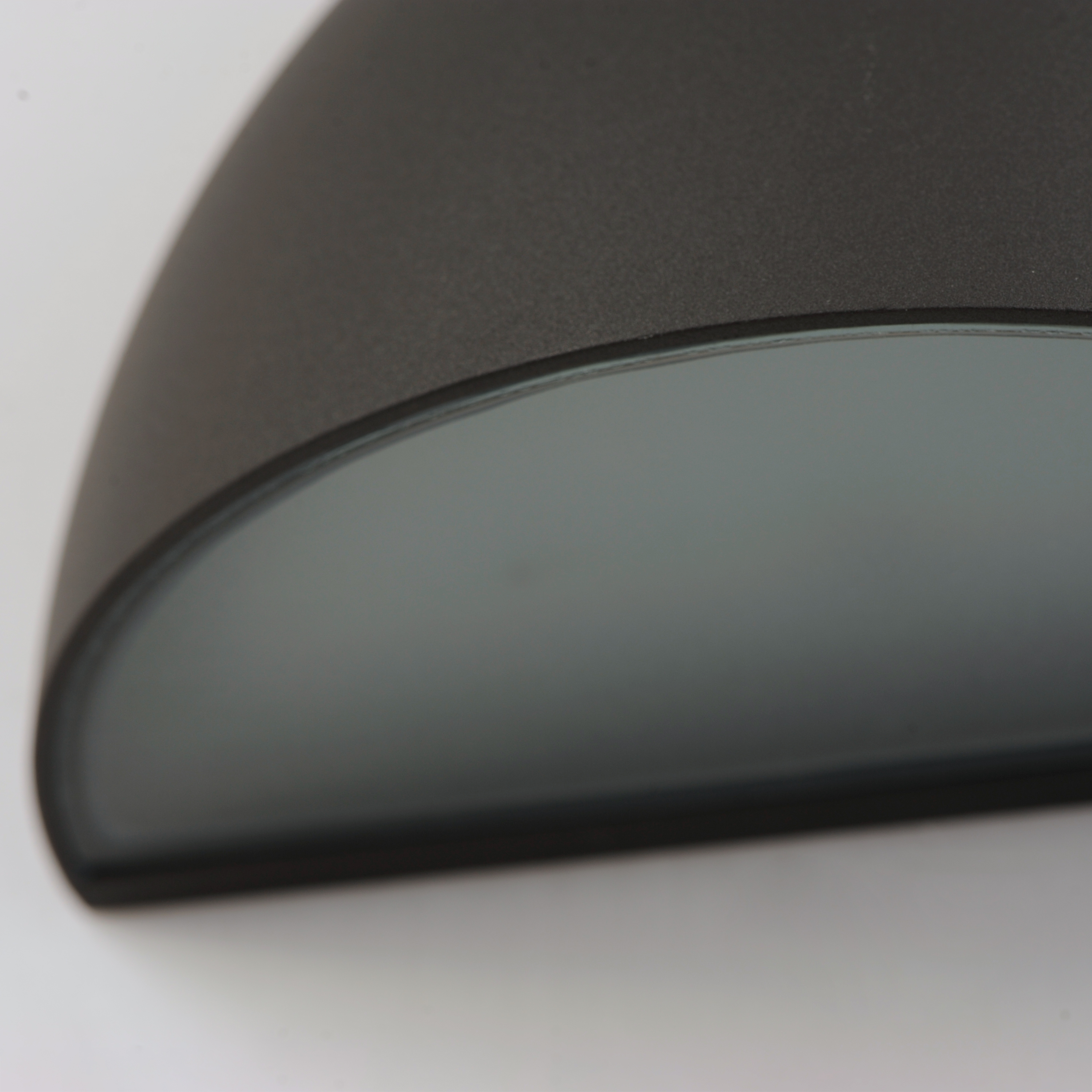

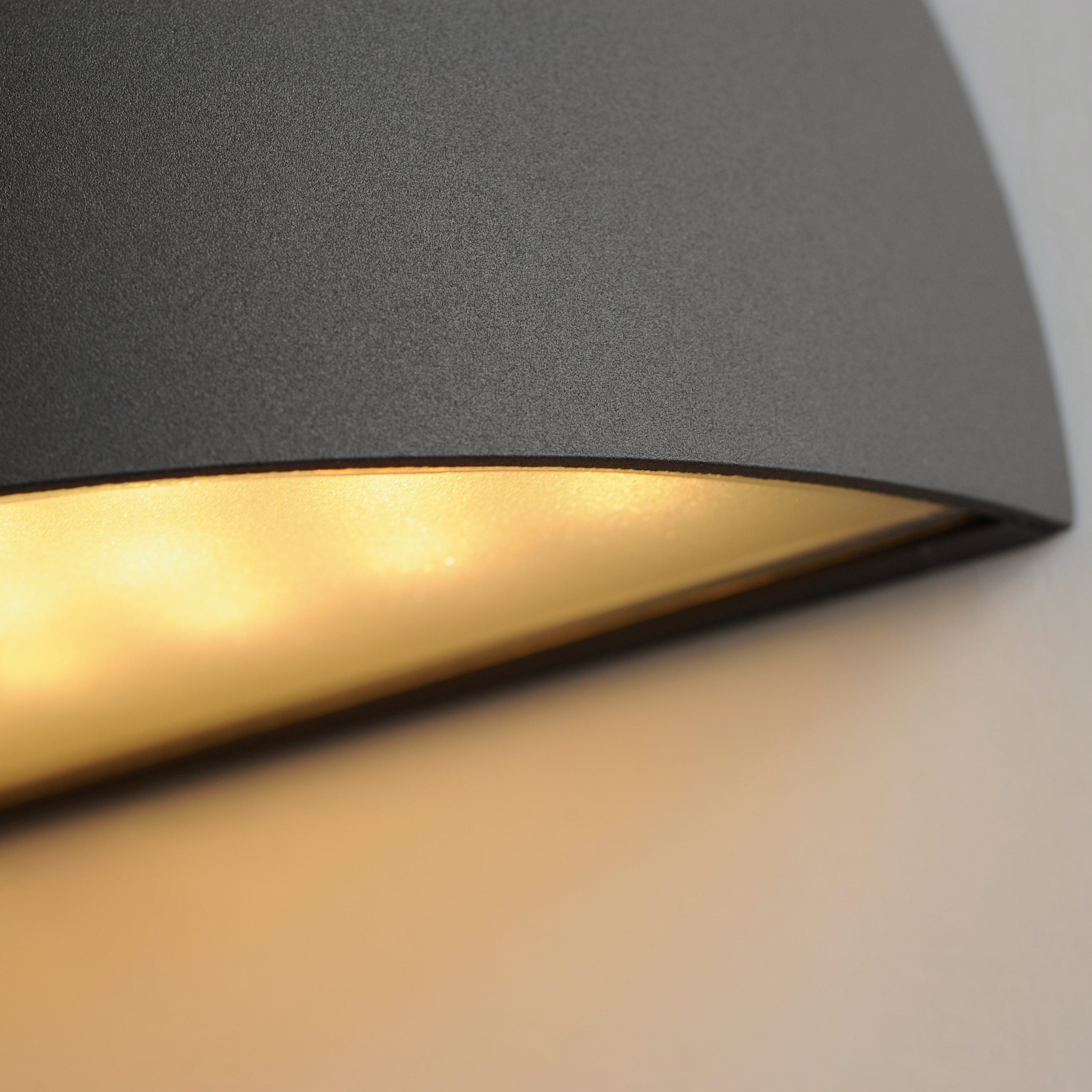

Pathfinder

SM562122ABZ | W7" x H4.5"

With solid Die-Cast Aluminum construction and powered by a range voltage input driver, Pathfinder is a high performance down light for commercial and residential installations. Either sharply angled or smoothly sloping, this discreet architectural light source is also available with various photocell and motion sensor options. Choose from Black, Architectural Bronze, or Metallic Sliver outdoor rated powder coat finishes.
Finish Options
  • Architectural Bronze
  • Black
  • Silver
Collection: Pathfinder
Type: Outdoor Wall Mount

Material: Aluminum +Acrylic

Finish: Architectural Bronze
ABZ

LAMPING

Number of Bulb: 1

Light Type: LED

Bulb Type: PCB Integrated

Bulb Max Wattage: 15

Total Wattage: 15

Lighting Direction: Down

Install Up/Down: Down

Rated Life: 50,000 Hours

Rated Lumens: 880

Color Temperature: 3000 K

Bulb(s): Integrated

CRI: 80

Dimmable: Only at 120V with ELV

Input Voltage: 120-277

MEASURMENTS

Width: 7"

Height: 4.5"

Extension: 3.5"

HCO: 2.25"

Wire Length: 8"

Hanging Weight: 1.4 lb.

UPS Shippable: Yes

CERTIFICATIONS/ OTHER

Safety Rating: Wet

ADA Compliant: Yes

Meet California Title 24 Requirements: For Outdoor


With solid Die-Cast Aluminum construction and powered by a range voltage input driver, Pathfinder is a high performance down light for commercial and residential installations. Either sharply angled or smoothly sloping, this discreet architectural light source is also available with various photocell and motion sensor options. Choose from Black, Architectural Bronze, or Metallic Sliver outdoor rated powder coat finishes.
