Culvert

SM866421ABZ | W2.5" x H7.5"

Square profiles rise vertically to deliver crisp architectural lighting suitable for both residential and commercial applications. Designed with a compact footprint that meets ADA requirements, the fixture provides generous illumination while maintaining a refined, low-profile presence. Choose configurations that cast light downward for Dark Sky compliance or both upward and downward for balanced wall washing. A concealed 120-277V universal voltage LED driver is integrated within the frame for dependable performance. Finished in durable outdoor powder coats of Matte Black, Architectural Bronze, or White, this series offers a versatile and modern solution for exterior lighting.
Finish Options
  • Architectural Bronze
  • White
  • Black
Collection: Culvert
Type: Outdoor Wall Mount

Material: Aluminum, Glass

Finish: Architectural Bronze
ABZ

LAMPING

Number of Bulb: 2

Light Type: LED

Bulb Type: DC Integrated

Bulb Max Wattage: 7

Total Wattage: 14

Lighting Direction: Up & Down

Install Up/Down: Up

Rated Life: 25,000 Hours

Rated Lumens: 1400

Color Temperature: 3000 K

Bulb(s): Integrated

CRI: 90

Dimmable: Triac, 0-10V

Input Voltage: 120-277

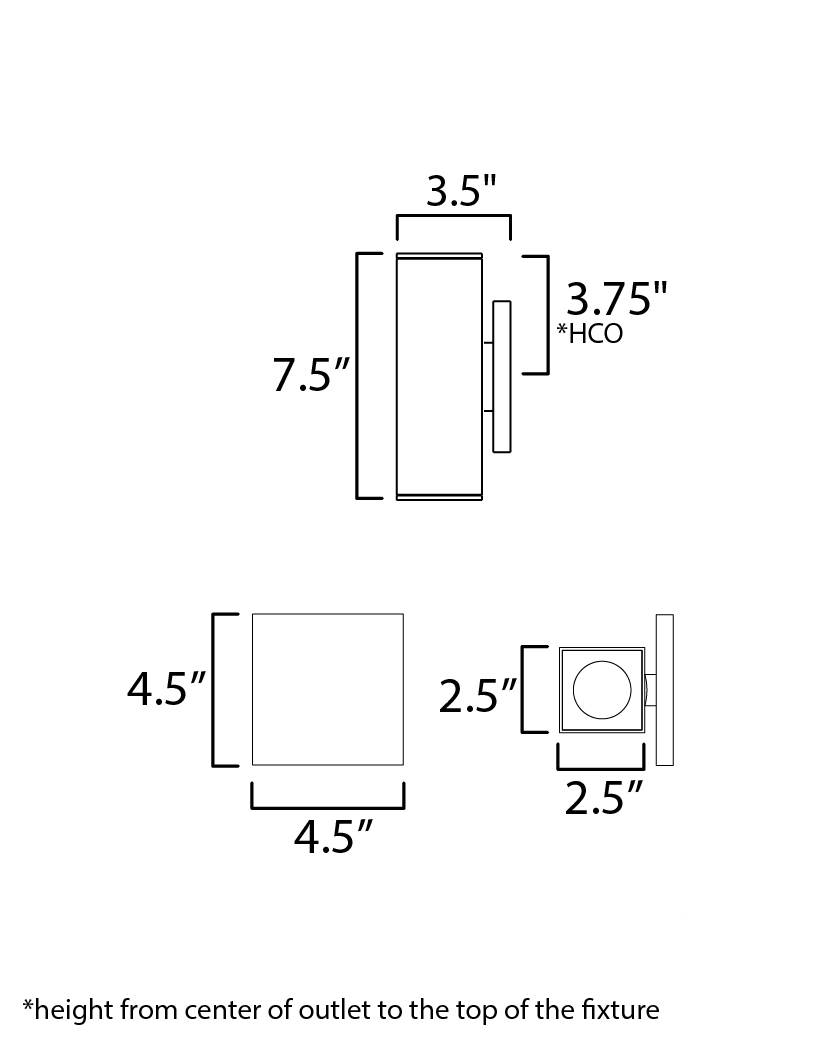

MEASURMENTS

Width: 2.5"

Height: 7.5"

Extension: 3.5"

HCO: 3.75"

BP Width: 4.5"

BP Height: 4.5"

Wire Length: 8"

Hanging Weight: 2 lb.

UPS Shippable: Yes

CERTIFICATIONS/ OTHER

Safety Rating: Wet

ADA Compliant: Yes

Meet California Title 24 Requirements: JA8 Listed


Square profiles rise vertically to deliver crisp architectural lighting suitable for both residential and commercial applications. Designed with a compact footprint that meets ADA requirements, the fixture provides generous illumination while maintaining a refined, low-profile presence. Choose configurations that cast light downward for Dark Sky compliance or both upward and downward for balanced wall washing. A concealed 120-277V universal voltage LED driver is integrated within the frame for dependable performance. Finished in durable outdoor powder coats of Matte Black, Architectural Bronze, or White, this series offers a versatile and modern solution for exterior lighting.
