Home > Collections > Conoid LED > Conoid Medium LED Outdoor Wall Sconce W/ Dusk-Dawn
Conoid LED

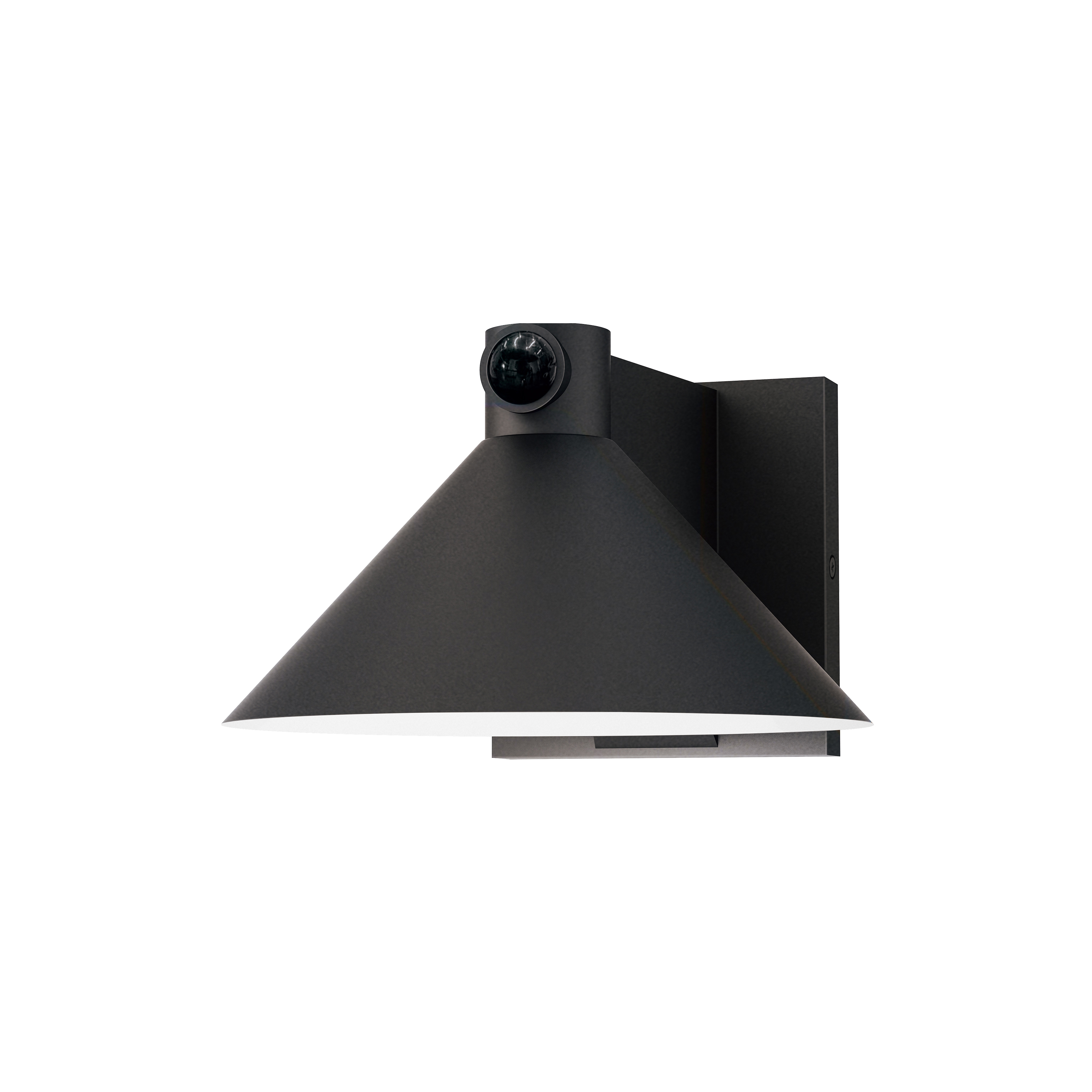

Conoid Medium LED Outdoor Wall Sconce W/ Dusk-Dawn
Conoid LED
Model: SM866141BK/MSP
Sizing: W8" x H5.25"
Finish: Black
Shade:
Price: $168.00
Aluminum cone shades suspend from a die cast aluminum frame which conforms to the same angle. Available with a Dusk-to-Dawn Motion Sensor and in Aluminum or Matte Black finish, this clean outdoor fixture has visual interest with simple design elements.


Conoid LED
Conoid LED
SM866141BK/MSP
Conoid Medium LED Outdoor Wall Sconce W/ Dusk-Dawn
Conoid LED
Lamping
Number of Bulbs: 1
Light Type: LED
Bulb Type: AC Integrated An average rating, in hours, indicating when 50% of a large group of lamps have failed, when operated at nominal lamp voltage and current; manufacturers use 3 hours per start for fluorescent lamps and 10 hours per start for HID lamps when performing lamp life testing procedures; every lamp type has a unique mortality curve that depicts its average rated life. For Photo-Optic specialty lamps, average rated life refers to the operating period after which on statistical average, 50% of the lamps will perform within their specified values.
Bulb Max Wattage: 8
Fixture Max Wattage: 8
Install Up/Down: Down
Rated Life: 25,000 Hours An average rating, in hours, indicating when 50% of a large group of lamps have failed, when operated at nominal lamp voltage and current; manufacturers use 3 hours per start for fluorescent lamps and 10 hours per start for HID lamps when performing lamp life testing procedures; every lamp type has a unique mortality curve that depicts its average rated life. For Photo-Optic specialty lamps, average rated life refers to the operating period after which on statistical average, 50% of the lamps will perform within their specified values.
Delivered Lumens: 400 A measurement of the power of light emitted from a source. The difference between LED lumen versus lumens from an incandescent or fluorescent source is that all of the lumen output is directed forward as opposed to a bulb where lumens come off the source in all directions. Lumens are lost on the back side of a bulb.
Color Temperature: 3000 K This is a measurement in Kelvin of the color of light a source produces. Higher color temperatures (5,000 K or more) are cool (blueish white) colors; lower color temperatures (2,700–3,000 K) are warm (yellowish white through red) colors.
Bulb(s): Integrated
CRI: 90
Dimmable: Triac or ELV
Input Voltage: 120

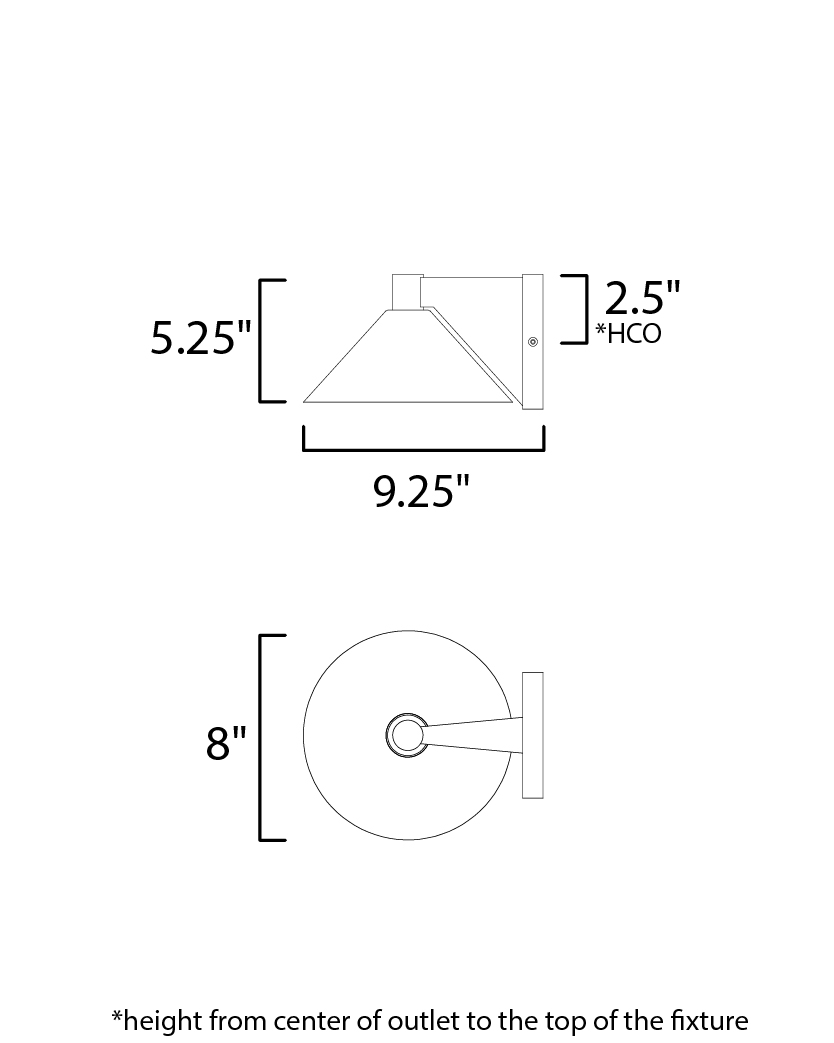

Measurements
Width: 8"
Height: 5.25"
Extension: 9.5"
HCO: 2.5"
BP Width: 4.75"
BP Height: 5.25"
Wire Length: 8"
Hanging Weight: 1.5 lb.
UPS Shippable: Yes Any box shipped via UPS that that is larger than 3 cubic feet in size will be charged shipping costs based on its dimensional weight rather than the actual weight of the package.

Certifications/Other
UL Standard: Wet



SM866141
Conoid LED
Conoid LED
Conoid LED


Downloads
Assembly Insturctions - English DOWNLOAD
Specification Sheet DOWNLOAD
IES Photometric DOWNLOAD
Product Image
Infograph Sheet Download Web
Download Rep
Convert Brochure
Diverse Brochure
Parts and Accessories
Schematic Diagram
