Home > Collections > Quarry > Quarry LED Wall Sconce/Flush Mount
Quarry

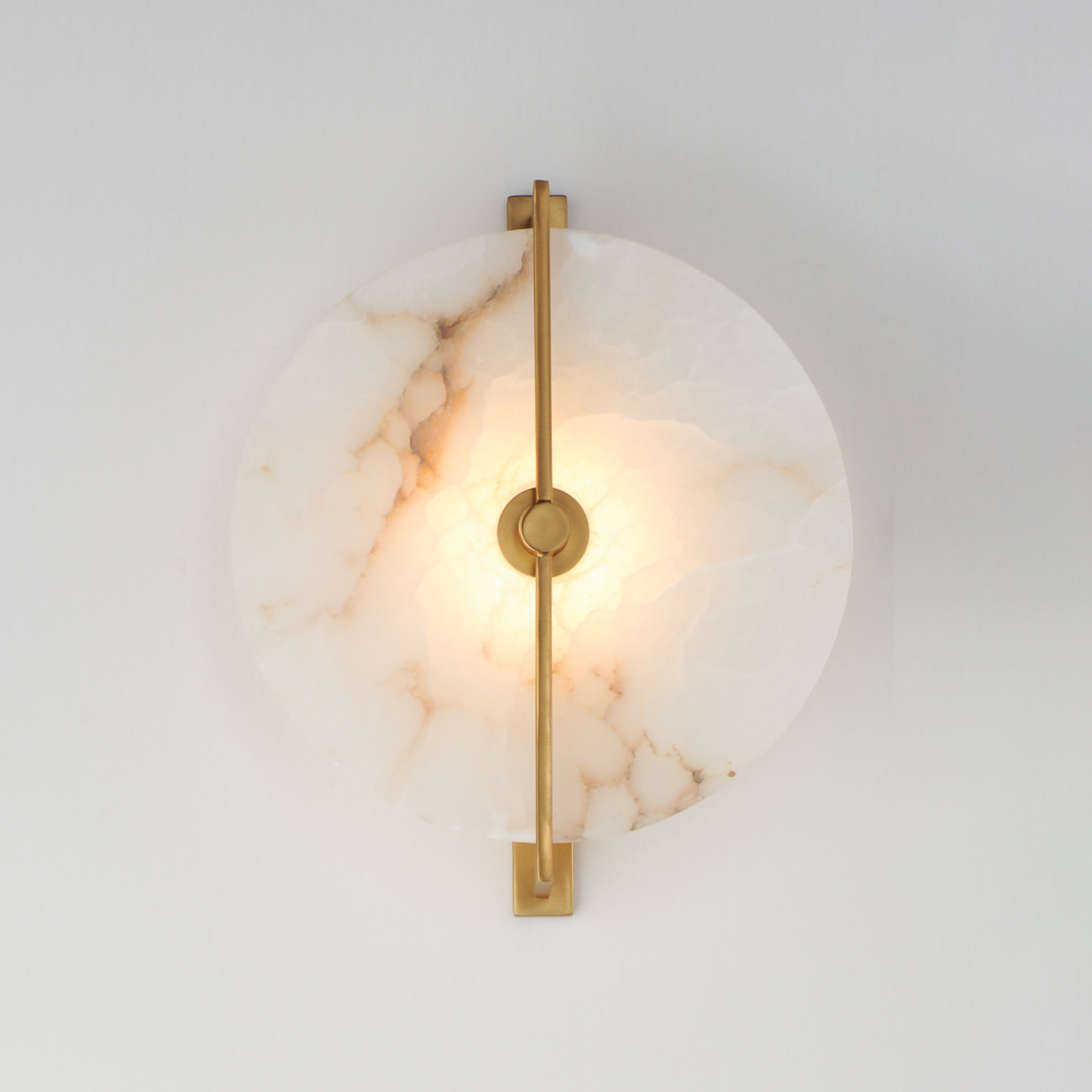

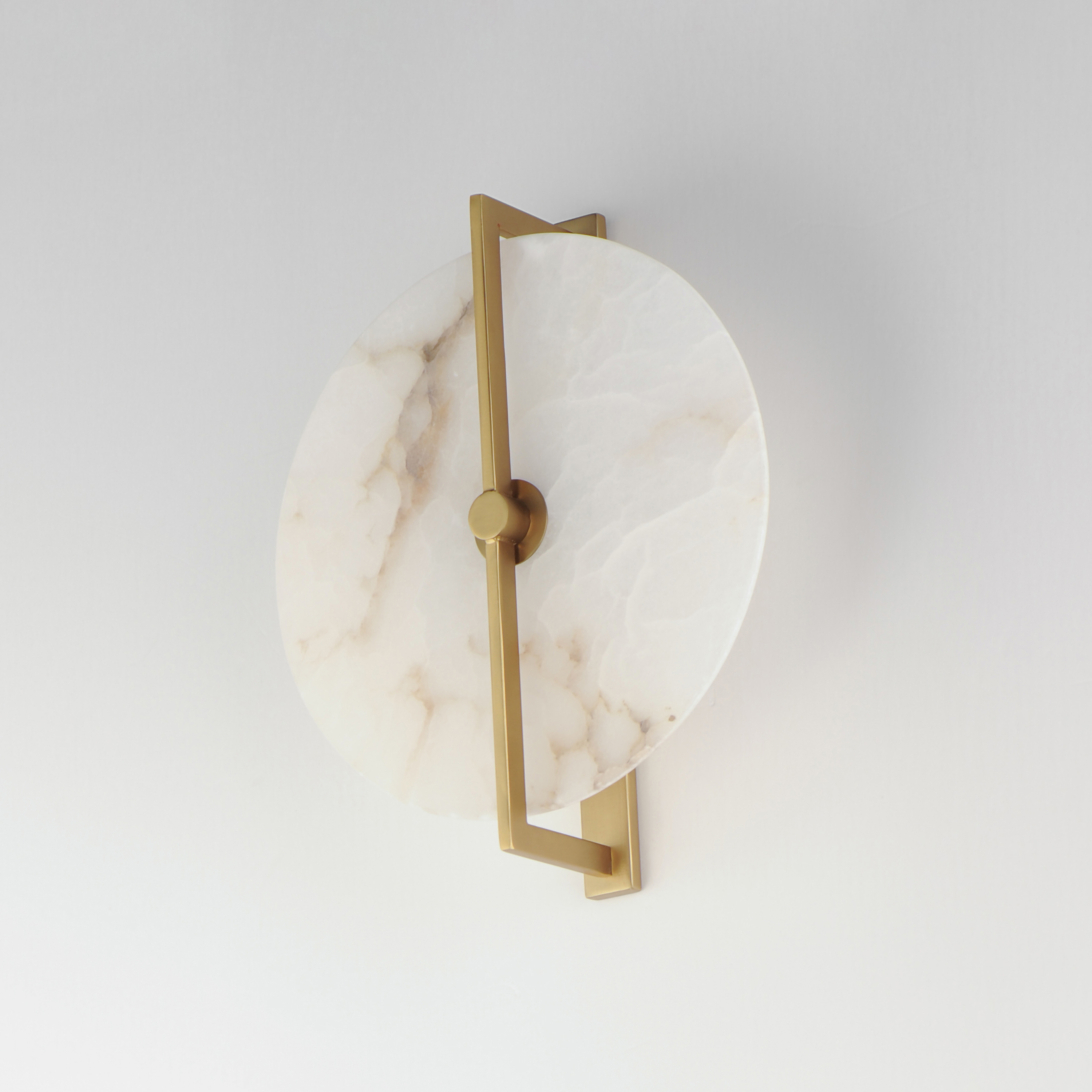

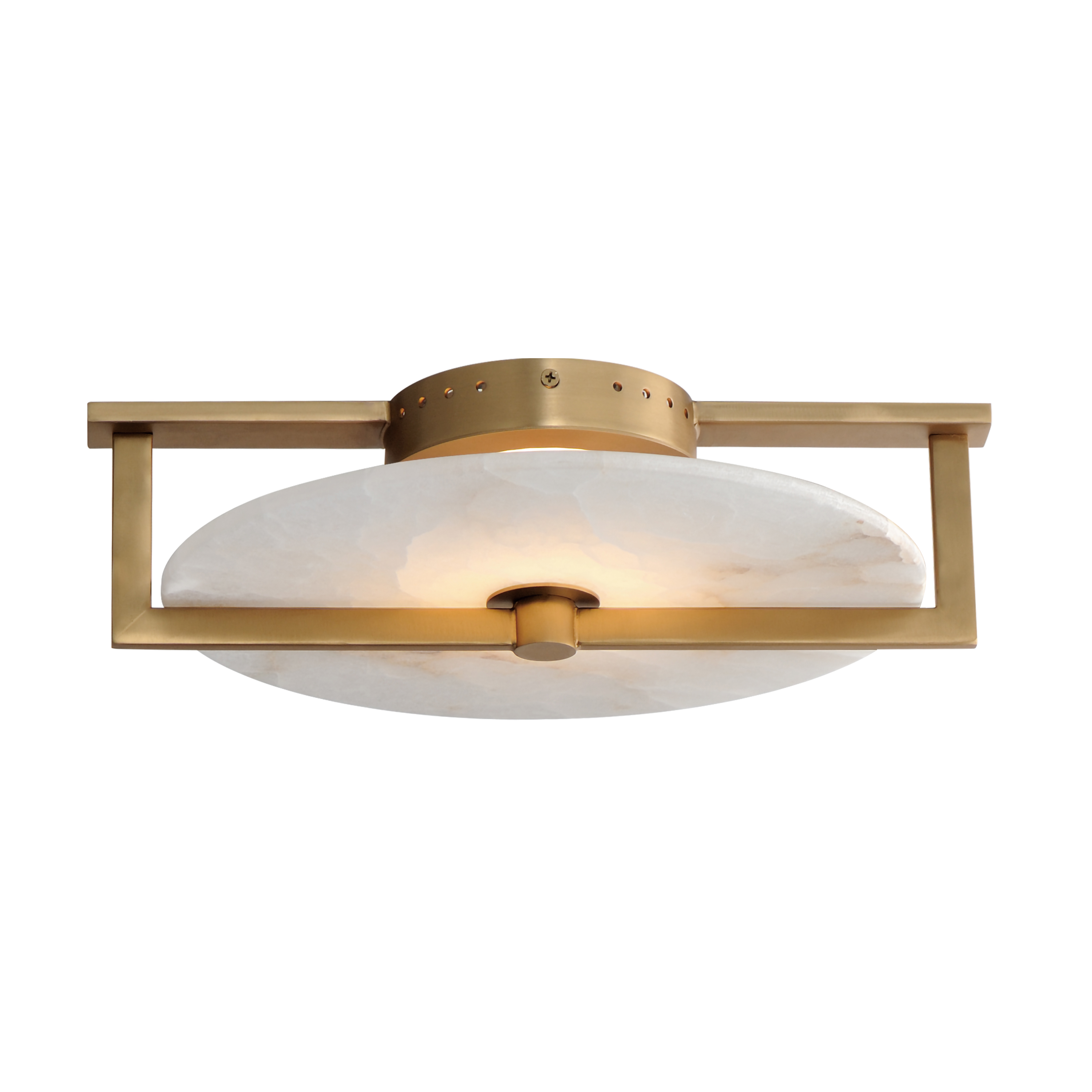

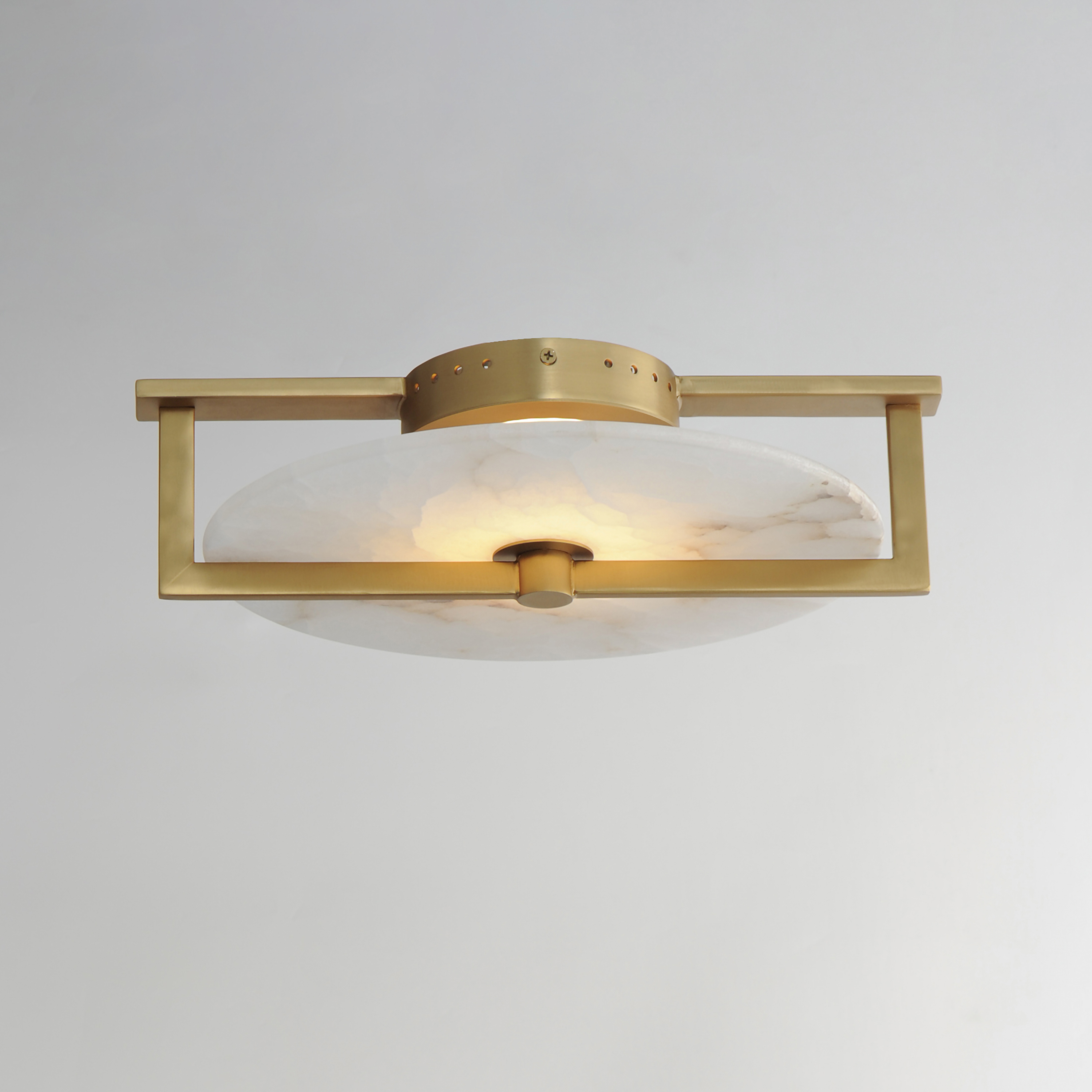

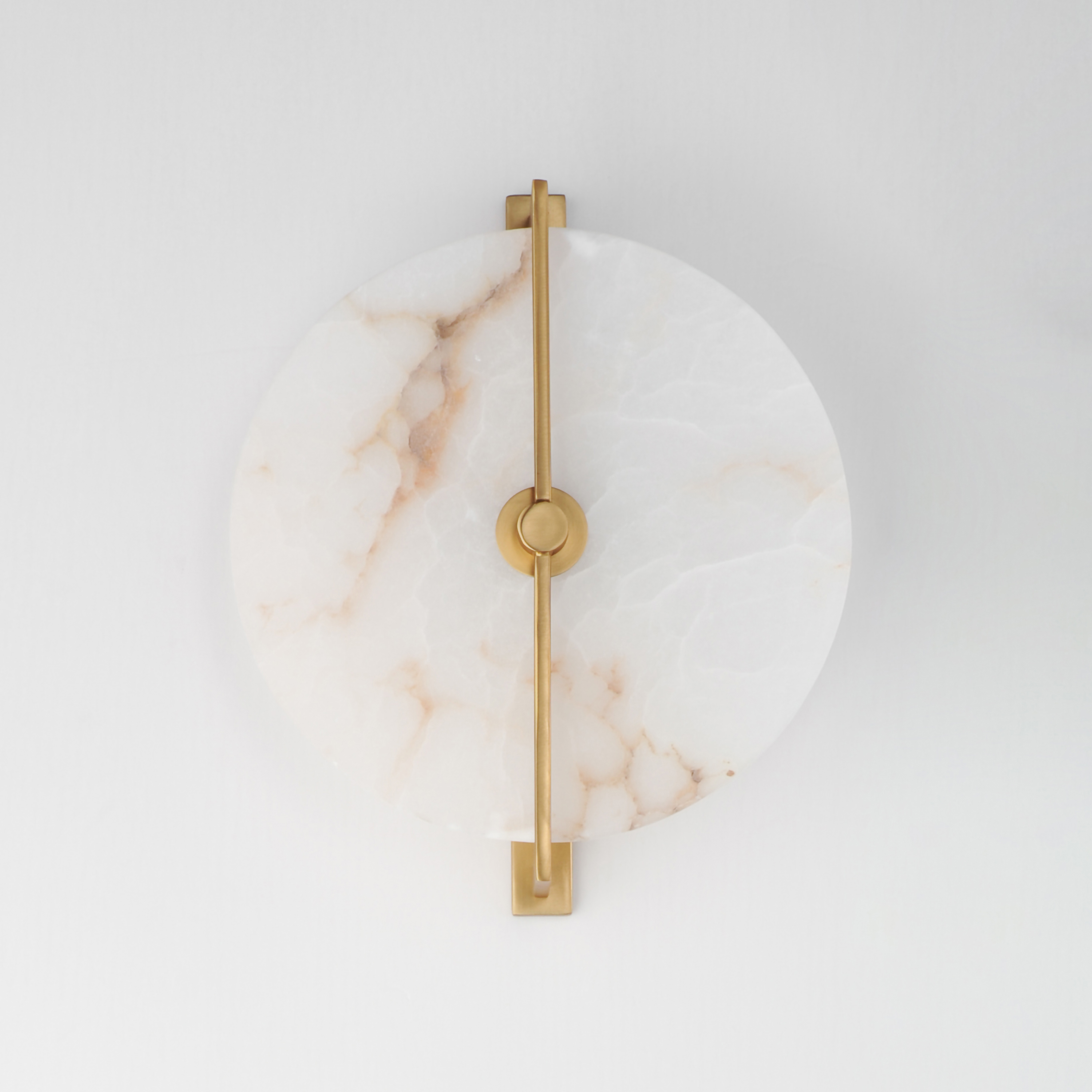

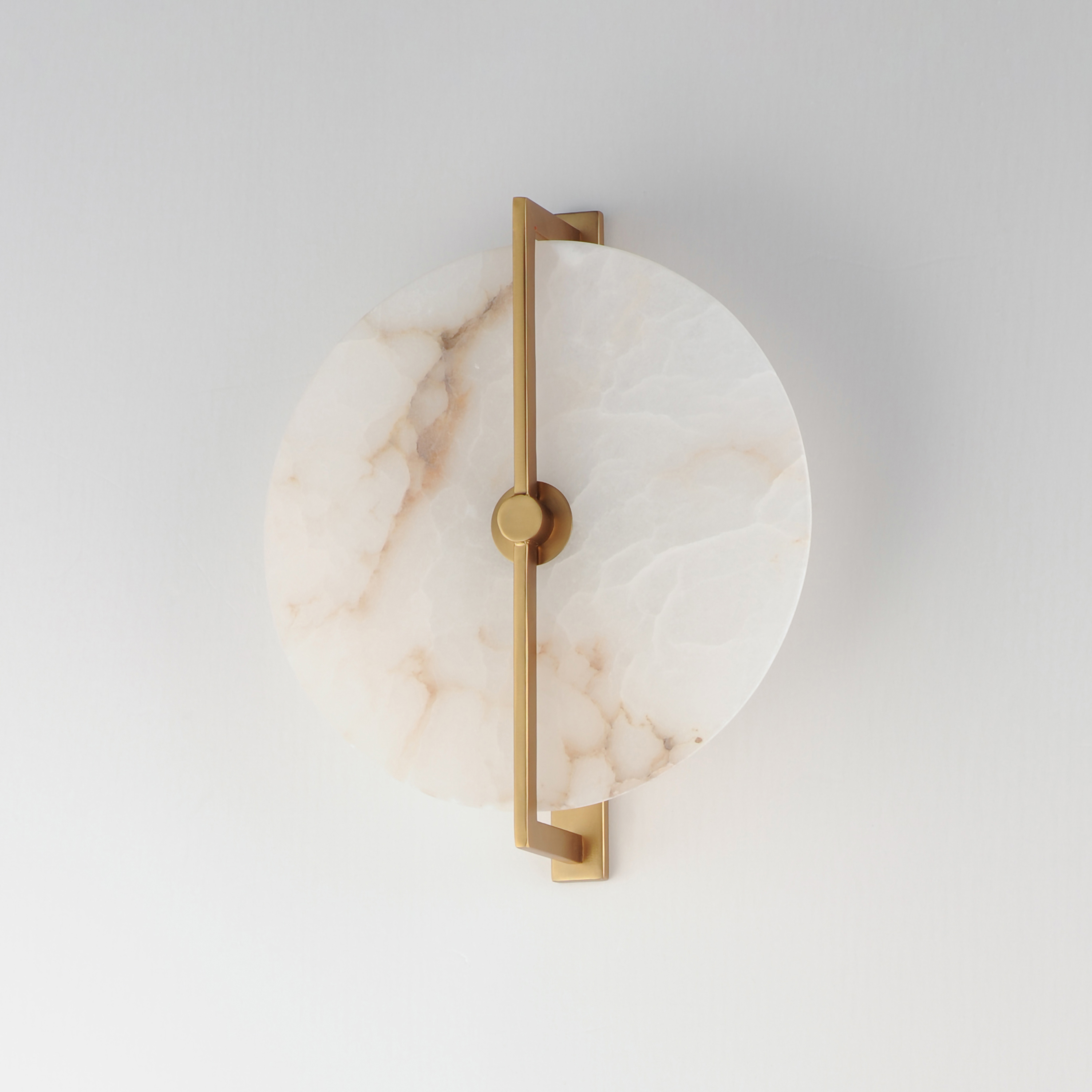

LED Wall Sconce/Flush Mount
Quarry
Model: SM168200WANAB
Sizing: L11.75" x W12.25" x H4"
Finish: Natural Aged Brass
Shade: White Alabaster
Price: $348.00
Modern in execution, the Quarry collection features natural Spanish alabaster in an iron frame finished in Darkened Bronze or Natural Aged Brass. Dedicated LED housing shine light on alabaster panels, highlighting the stone's beautiful, veined characteristics while also providing ambient lighting. These surface mounted fixtures are designed to install on either wall or ceiling surfaces.


OPTIONS


Quarry
Quarry
SM168200WANAB
LED Wall Sconce/Flush Mount
Quarry
Lamping
Number of Bulbs: 1
Light Type: LED
Bulb Type: PCB Integrated An average rating, in hours, indicating when 50% of a large group of lamps have failed, when operated at nominal lamp voltage and current; manufacturers use 3 hours per start for fluorescent lamps and 10 hours per start for HID lamps when performing lamp life testing procedures; every lamp type has a unique mortality curve that depicts its average rated life. For Photo-Optic specialty lamps, average rated life refers to the operating period after which on statistical average, 50% of the lamps will perform within their specified values.
Bulb Max Wattage: 13
Fixture Max Wattage: 13
Install Up/Down: Indirect
Rated Life: 50,000 Hours An average rating, in hours, indicating when 50% of a large group of lamps have failed, when operated at nominal lamp voltage and current; manufacturers use 3 hours per start for fluorescent lamps and 10 hours per start for HID lamps when performing lamp life testing procedures; every lamp type has a unique mortality curve that depicts its average rated life. For Photo-Optic specialty lamps, average rated life refers to the operating period after which on statistical average, 50% of the lamps will perform within their specified values.
Delivered Lumens: 825 A measurement of the power of light emitted from a source. The difference between LED lumen versus lumens from an incandescent or fluorescent source is that all of the lumen output is directed forward as opposed to a bulb where lumens come off the source in all directions. Lumens are lost on the back side of a bulb.
Color Temperature: 3000 K This is a measurement in Kelvin of the color of light a source produces. Higher color temperatures (5,000 K or more) are cool (blueish white) colors; lower color temperatures (2,700–3,000 K) are warm (yellowish white through red) colors.
Bulb(s): Integrated
CRI: 90
Dimmable: Y
Input Voltage: 120

Measurements
Width: 12.25"
Height: 4"
Length: 11.75"
HCO: 6.25"
Wire Length: 8"
Hanging Weight: 2.2 lb.
UPS Shippable: Yes Any box shipped via UPS that that is larger than 3 cubic feet in size will be charged shipping costs based on its dimensional weight rather than the actual weight of the package.
Canopy Width: 5"
Canopy Height: 1"
Canopy Length: 5"

Certifications/Other
UL Standard: Damp
ADA Compliant: Yes Click for Additional Information on ADA



SM168200
Quarry
Quarry
Quarry LED Wall Sconce/Flush Mount
Quarry LED Wall Sconce/Flush Mount
Quarry LED Wall Sconce/Flush Mount
Quarry LED Wall Sconce/Flush Mount
Quarry LED Wall Sconce/Flush Mount
Quarry


Downloads
Assembly Insturctions - English DOWNLOAD
Specification Sheet DOWNLOAD
IES Photometric DOWNLOAD
Product Image
Infograph Sheet Download Web
Download Rep
Convert Brochure
Diverse Brochure
Parts and Accessories
Schematic Diagram
