Home > Collections > Dorian > Dorian 48 Linear LED Pendant
Dorian
48 Linear LED Pendant
Dorian
Model: SM251357BK
Sizing: L47.5" x W4.75" x H1"
Finish: Black
Shade:
Price: $428.00
A bold and timeless collection, Dorian features a square block support with two cylinder LED tubes that extend horizontally. The tubes rotate individually to position light making it perfect for highlighting artwork and collectibles in stairwells or walls. The collection features elongated linear and vertical pendants, picture lights and damp rated sconces. The wall-mounted sconces have streamlined back plates that are either square or round that can mount to a single gang junction box or common 3-0 or 4-0 boxes with cover plate included. Two options for extension including one that extends less than four inches for ADA compliance. Available in Matte Black, Polished Chrome, and plated Gold, this collection is a subtle, handsome design with timeless appeal.


OPTIONS


Dorian
Dorian
SM251357BK
48 Linear LED Pendant
Dorian
Lamping
Number of Bulbs: 3
Light Type: LED
Bulb Type: DC Integrated An average rating, in hours, indicating when 50% of a large group of lamps have failed, when operated at nominal lamp voltage and current; manufacturers use 3 hours per start for fluorescent lamps and 10 hours per start for HID lamps when performing lamp life testing procedures; every lamp type has a unique mortality curve that depicts its average rated life. For Photo-Optic specialty lamps, average rated life refers to the operating period after which on statistical average, 50% of the lamps will perform within their specified values.
Bulb Max Wattage: 6
Fixture Max Wattage: 18
Rated Life: 30,000 Hours An average rating, in hours, indicating when 50% of a large group of lamps have failed, when operated at nominal lamp voltage and current; manufacturers use 3 hours per start for fluorescent lamps and 10 hours per start for HID lamps when performing lamp life testing procedures; every lamp type has a unique mortality curve that depicts its average rated life. For Photo-Optic specialty lamps, average rated life refers to the operating period after which on statistical average, 50% of the lamps will perform within their specified values.
Delivered Lumens: 1080 A measurement of the power of light emitted from a source. The difference between LED lumen versus lumens from an incandescent or fluorescent source is that all of the lumen output is directed forward as opposed to a bulb where lumens come off the source in all directions. Lumens are lost on the back side of a bulb.
Color Temperature: 3000 K This is a measurement in Kelvin of the color of light a source produces. Higher color temperatures (5,000 K or more) are cool (blueish white) colors; lower color temperatures (2,700–3,000 K) are warm (yellowish white through red) colors.
Bulb(s): Integrated
CRI: 90
Dimmable: Triac CL
Input Voltage: 120-277

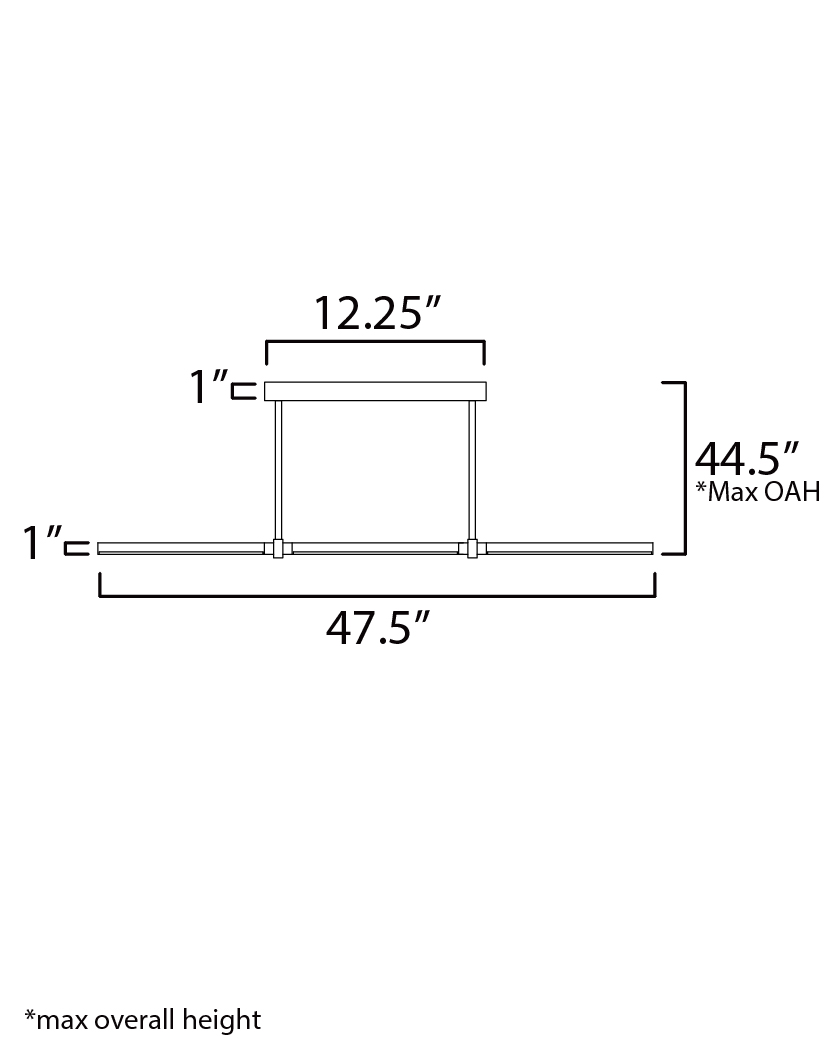

Measurements
Width: 4.75"
Height: 1"
Length: 47.5"
Max Overall Height: 44.5"
Min Overall Height: 15"
Wire Length: 120"
Hanging Weight: 6.31 lb.
UPS Shippable: Oversize Any box shipped via UPS that that is larger than 3 cubic feet in size will be charged shipping costs based on its dimensional weight rather than the actual weight of the package.
Canopy Width: 4.75"
Canopy Height: 1.75"
Canopy Length: 19"

Certifications/Other
UL Standard: Dry



SM251357
Dorian
Dorian
Dorian 48 Linear LED Pendant
Dorian 48 Linear LED Pendant
Dorian 48 Linear LED Pendant
Dorian 48 Linear LED Pendant
Dorian 48 Linear LED Pendant
Dorian
