Home > Collections > Raven > Raven LED Pendant
Raven
LED Pendant
Raven
Model: SM254412BK
Sizing: L23.5" x W23.5" x H7"
Finish: Black
Shade: Satin White
Price: $548.00
Discontinued

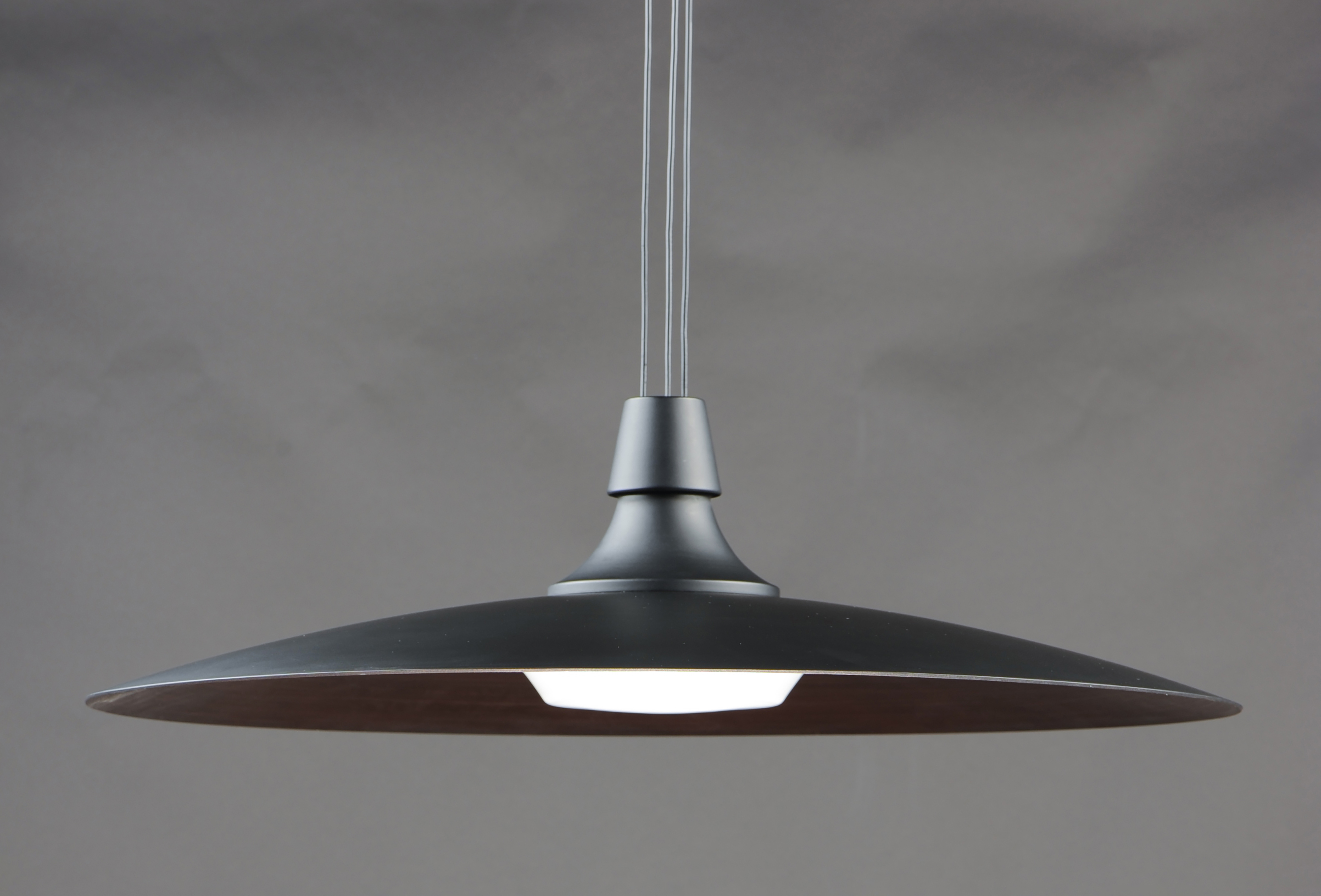

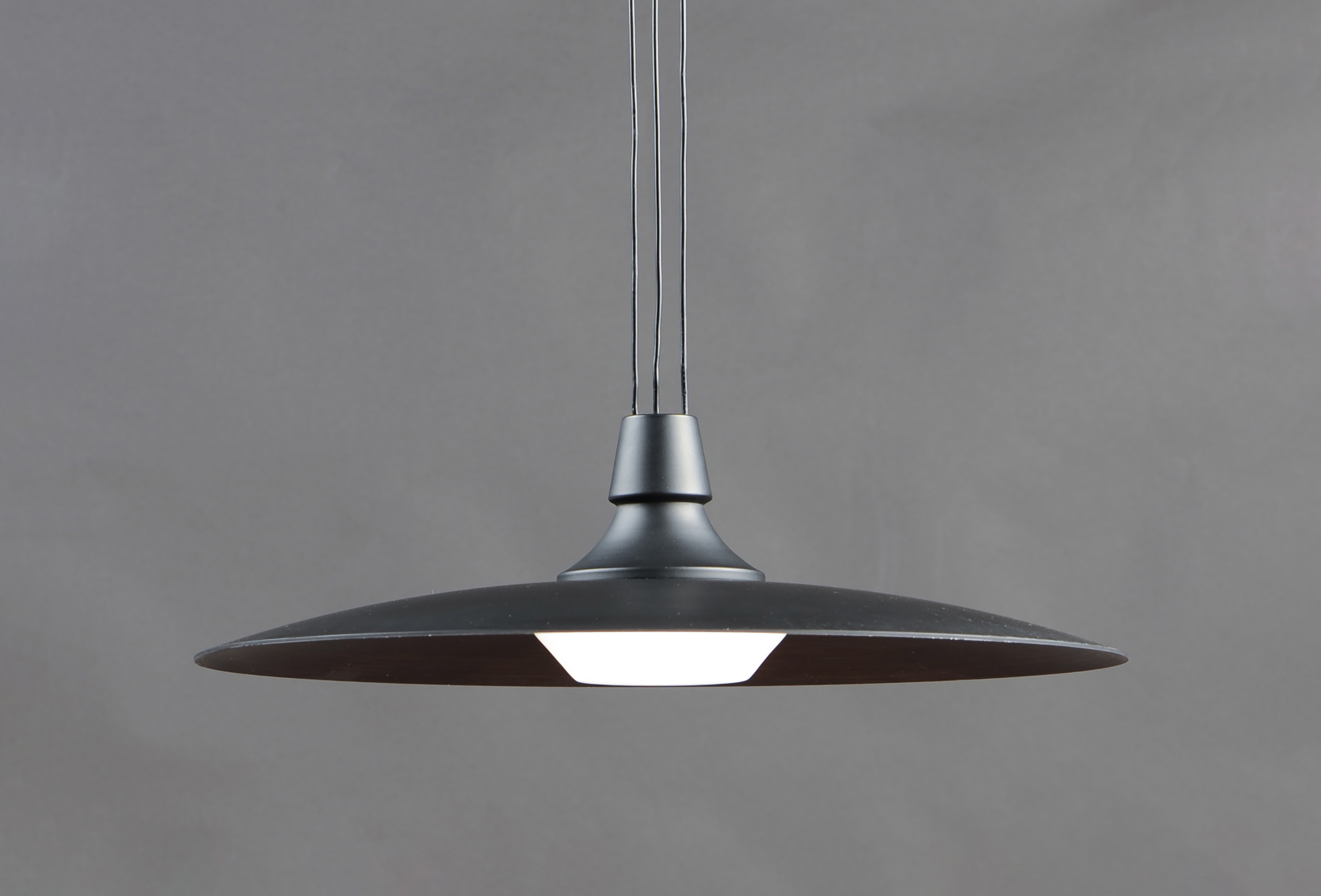

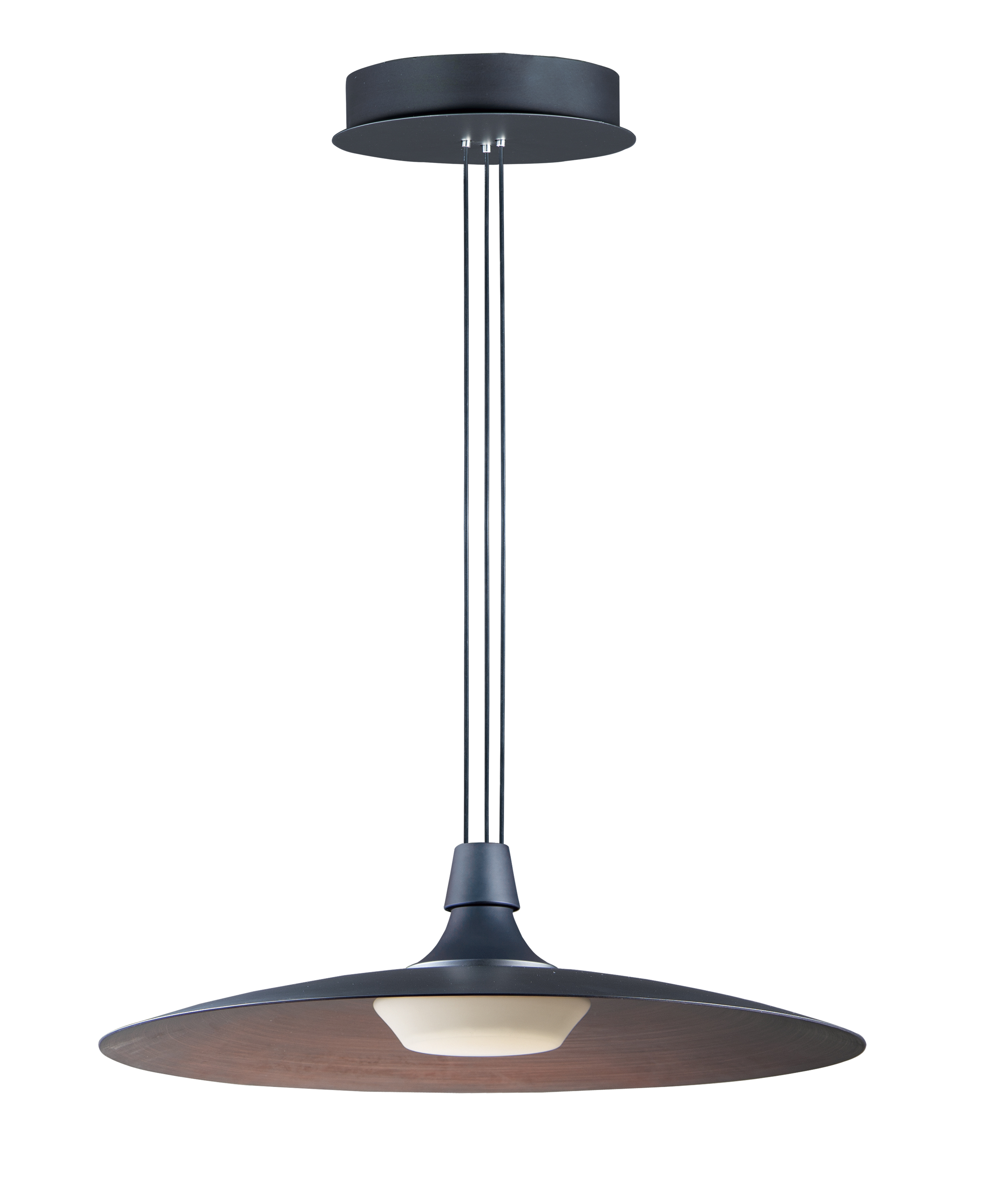

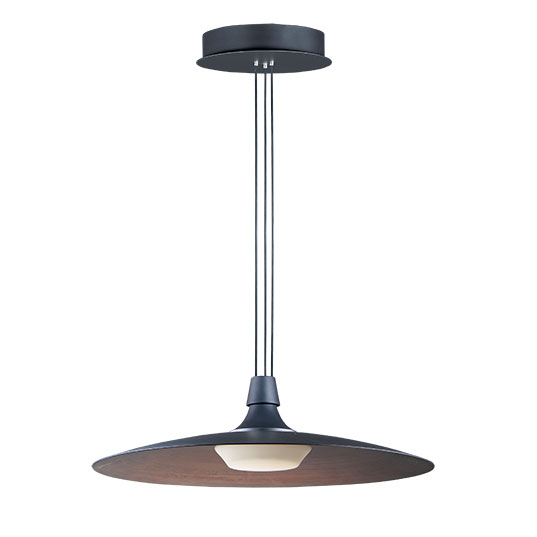

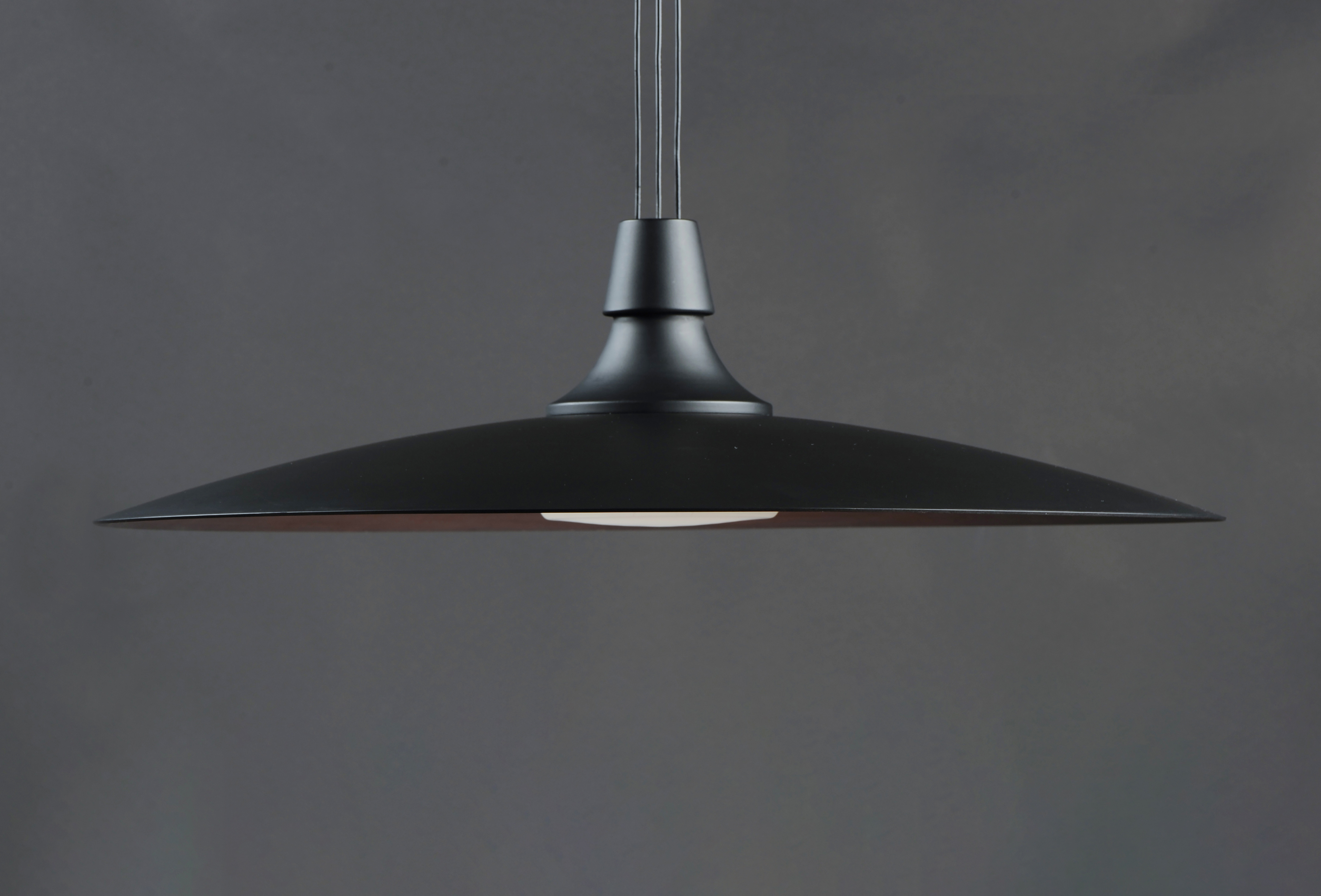

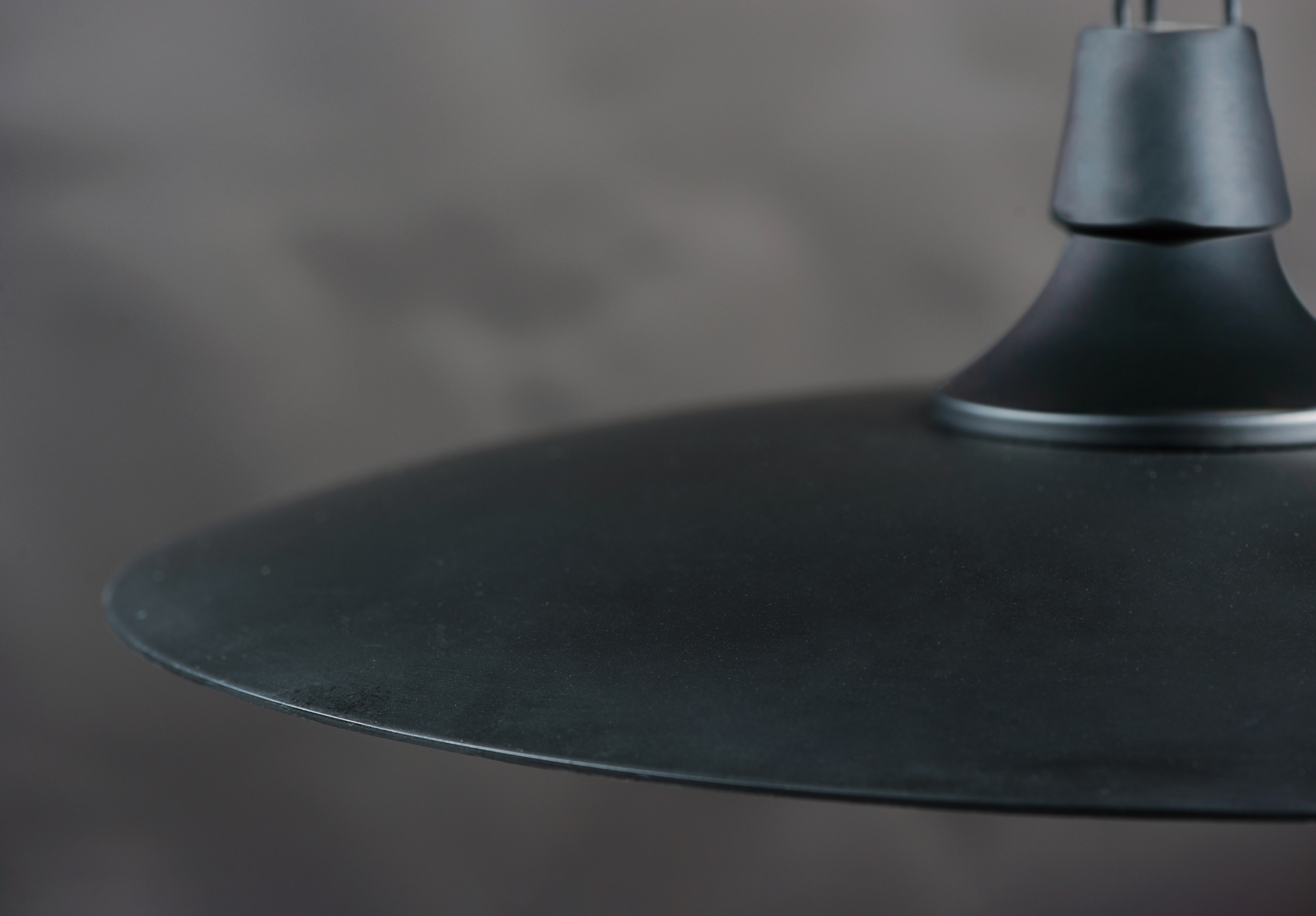

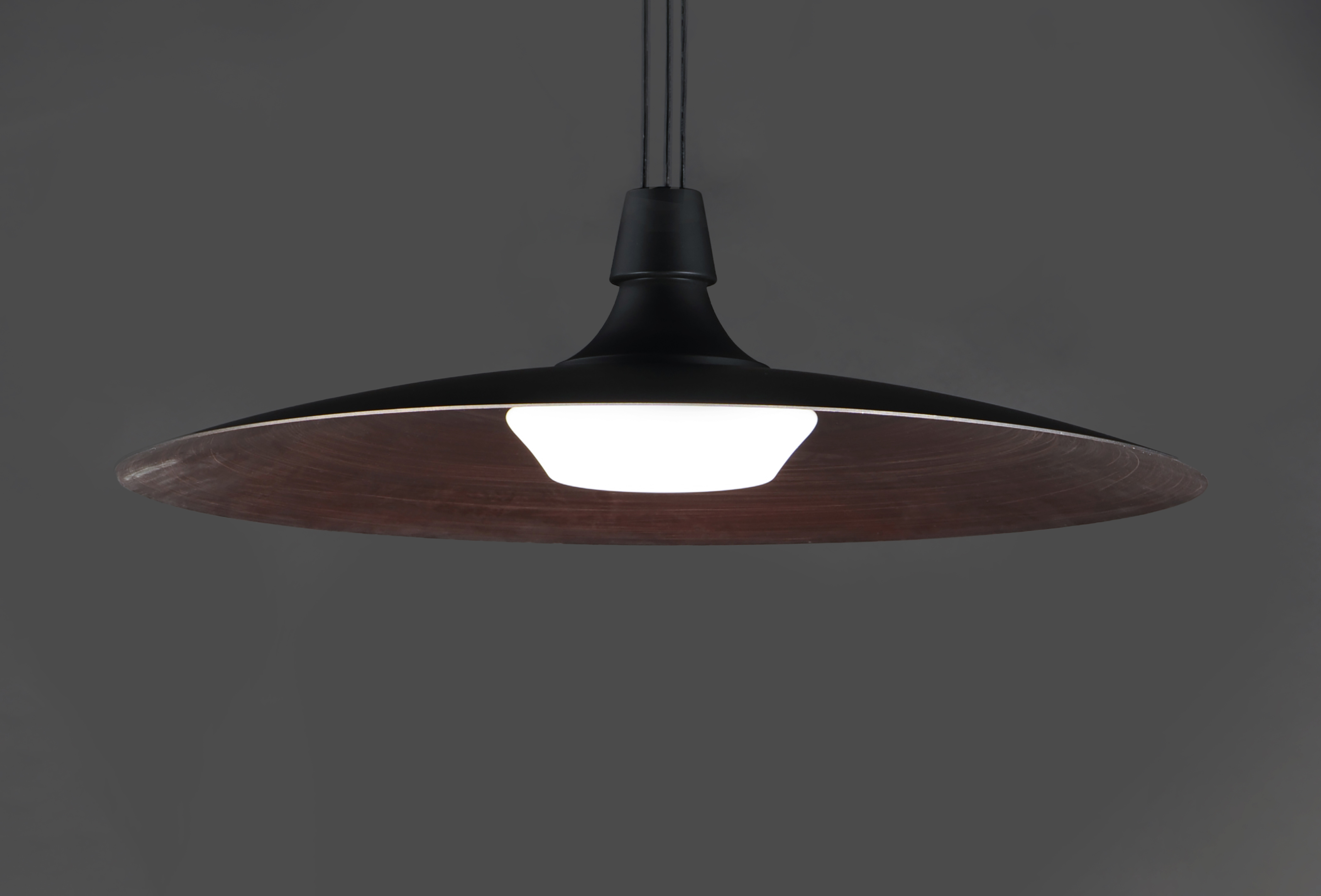

Low profile cone shape metal shades finished in Black are fitted with a Satin White glass diffuser which conceals a high power LED light source.


OPTIONS


Raven
Raven
SM254412BK
LED Pendant
Raven
Lamping
Number of Bulbs: 1
Light Type: LED
Bulb Type: PCB Integrated An average rating, in hours, indicating when 50% of a large group of lamps have failed, when operated at nominal lamp voltage and current; manufacturers use 3 hours per start for fluorescent lamps and 10 hours per start for HID lamps when performing lamp life testing procedures; every lamp type has a unique mortality curve that depicts its average rated life. For Photo-Optic specialty lamps, average rated life refers to the operating period after which on statistical average, 50% of the lamps will perform within their specified values.
Bulb Max Wattage: 15
Fixture Max Wattage: 15
Rated Life: 50,000 Hours An average rating, in hours, indicating when 50% of a large group of lamps have failed, when operated at nominal lamp voltage and current; manufacturers use 3 hours per start for fluorescent lamps and 10 hours per start for HID lamps when performing lamp life testing procedures; every lamp type has a unique mortality curve that depicts its average rated life. For Photo-Optic specialty lamps, average rated life refers to the operating period after which on statistical average, 50% of the lamps will perform within their specified values.
Delivered Lumens: 600 A measurement of the power of light emitted from a source. The difference between LED lumen versus lumens from an incandescent or fluorescent source is that all of the lumen output is directed forward as opposed to a bulb where lumens come off the source in all directions. Lumens are lost on the back side of a bulb.
Color Temperature: 3000 K This is a measurement in Kelvin of the color of light a source produces. Higher color temperatures (5,000 K or more) are cool (blueish white) colors; lower color temperatures (2,700–3,000 K) are warm (yellowish white through red) colors.
Bulb(s): Integrated
Photo Cell: N
CRI: 90
Dimmable: ELV or Triac CL
Input Voltage: 120

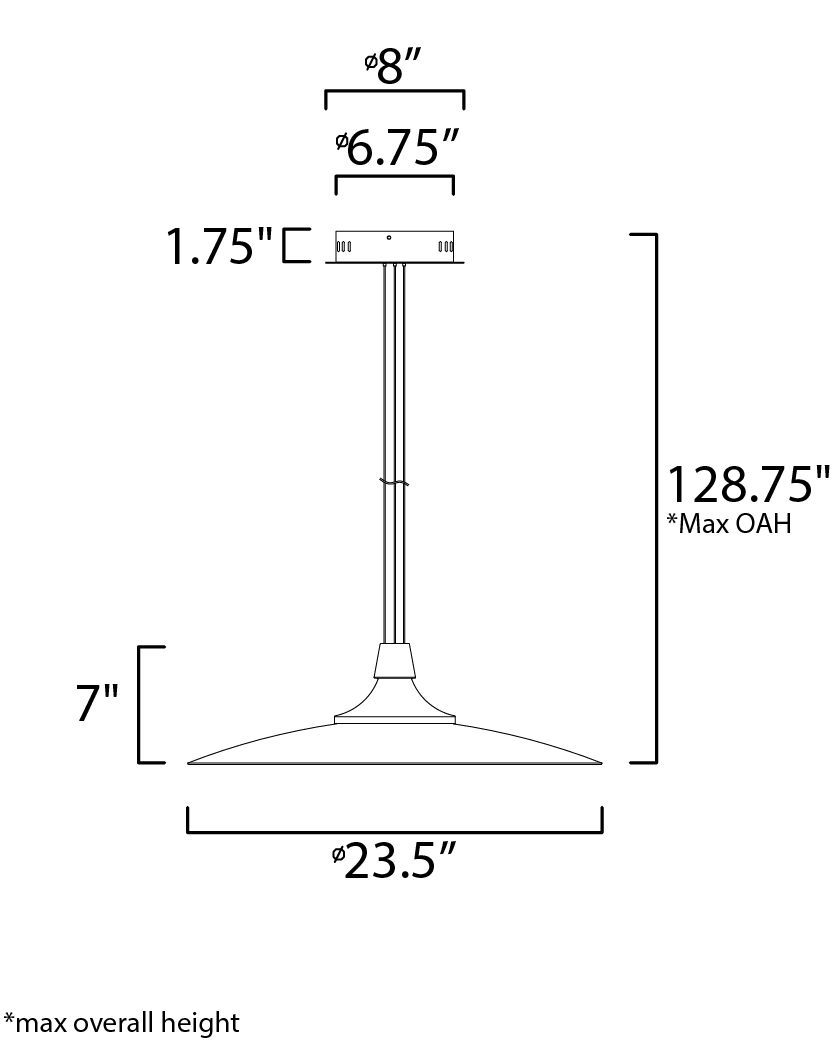

Measurements
Width: 23.5"
Height: 7"
Length: 23.5"
Max Overall Height: 128.75"
Min Overall Height: 9.75"
Wire Length: 120"
Hanging Weight: 7.26 lb.
UPS Shippable: Yes Any box shipped via UPS that that is larger than 3 cubic feet in size will be charged shipping costs based on its dimensional weight rather than the actual weight of the package.
Canopy Width: 8"
Canopy Height: 1.75"
Canopy Length: 8"

Certifications/Other
UL Standard: Dry
Dark Sky: N
Energy Star: No Click for Additional Information on ENERGY STAR
Meet California Title 24 Requirements: N Click for Additional Information on Title 24



SM254412
Raven
Raven
Raven LED Pendant
Raven LED Pendant
Raven LED Pendant
Raven LED Pendant
Raven LED Pendant
Raven


Downloads
Specification Sheet DOWNLOAD
Product Image
Convert Brochure
Diverse Brochure
Parts and Accessories
Schematic Diagram
