Home > Collections > Quayside VX > Quayside VX 14 Outdoor LED Pendant
Quayside VX

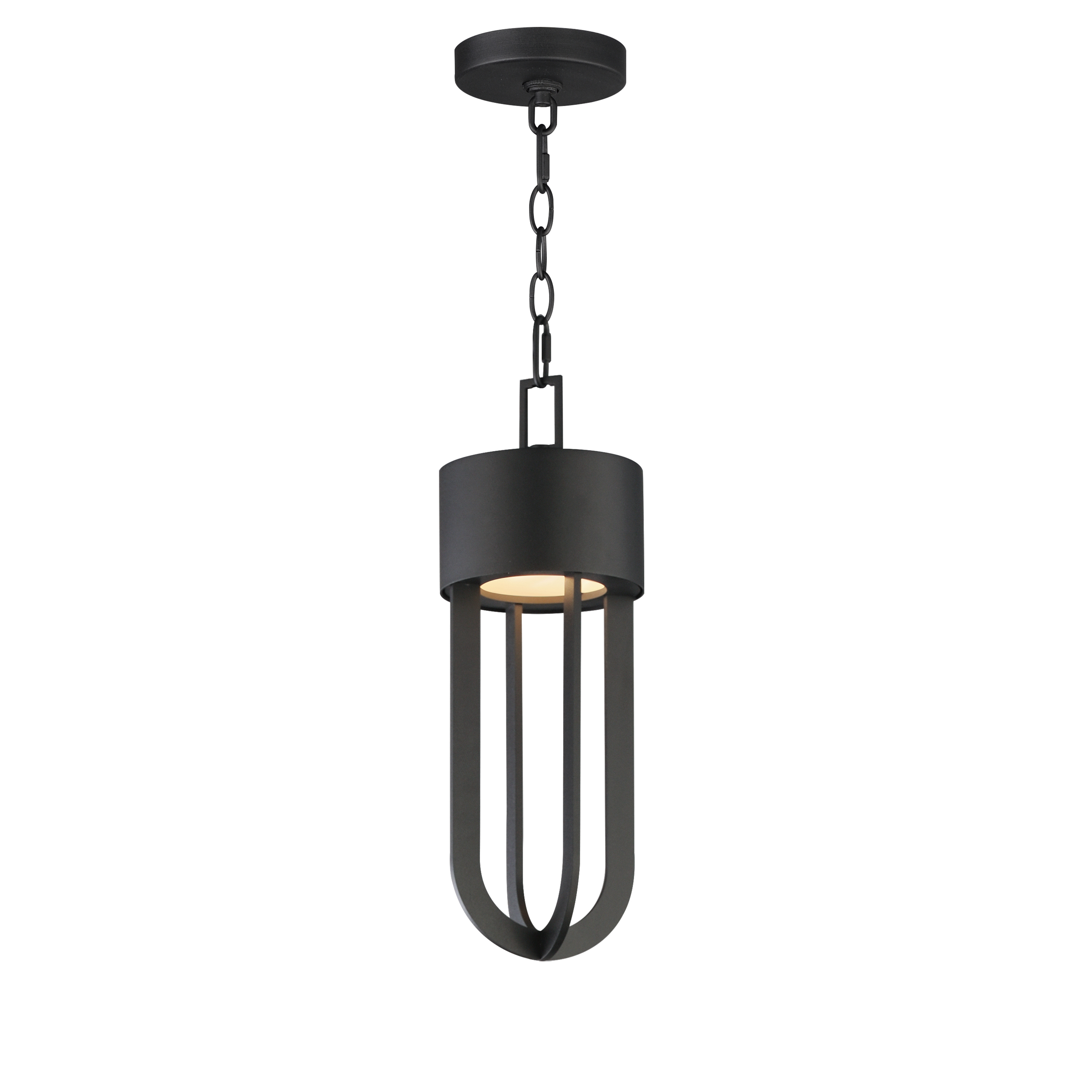

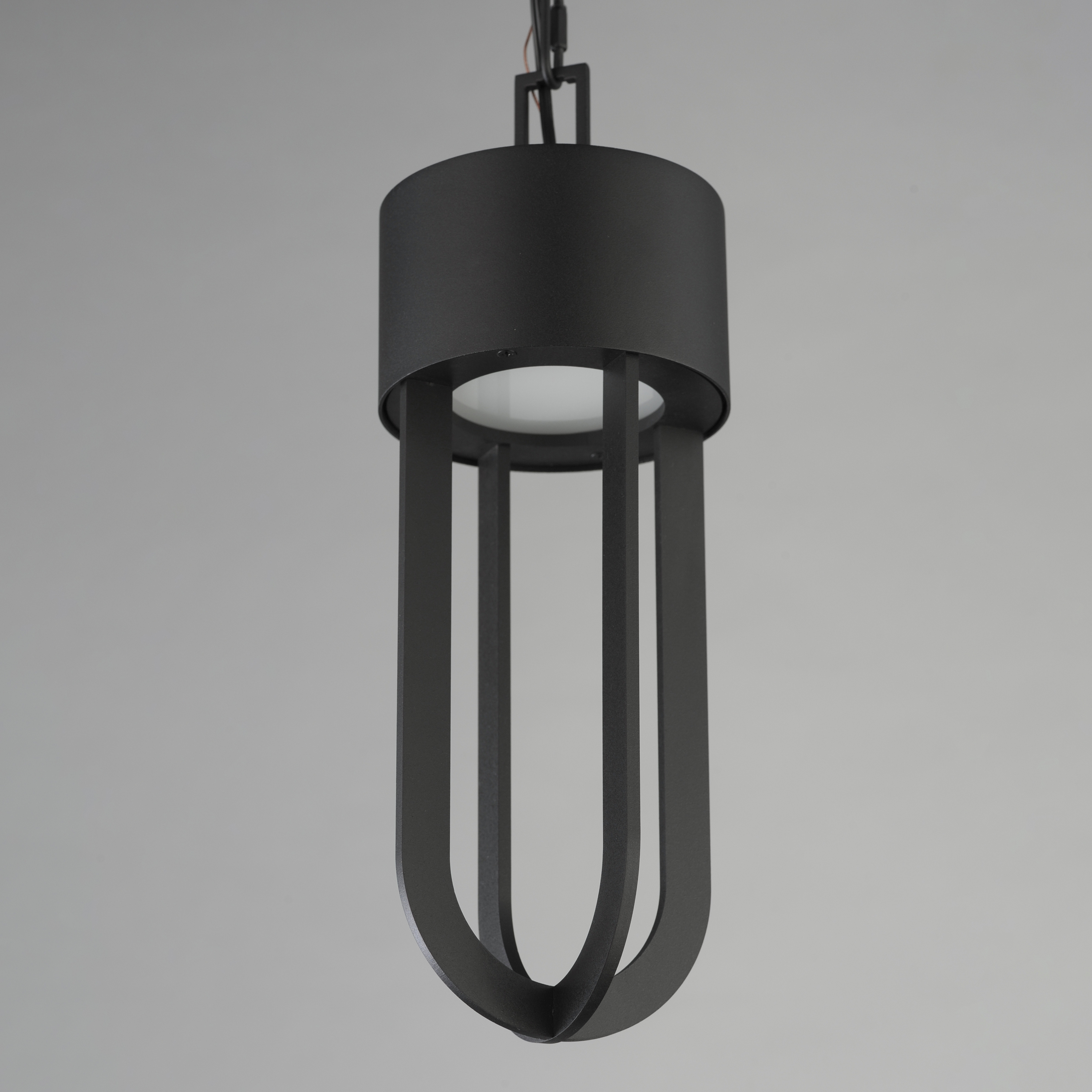

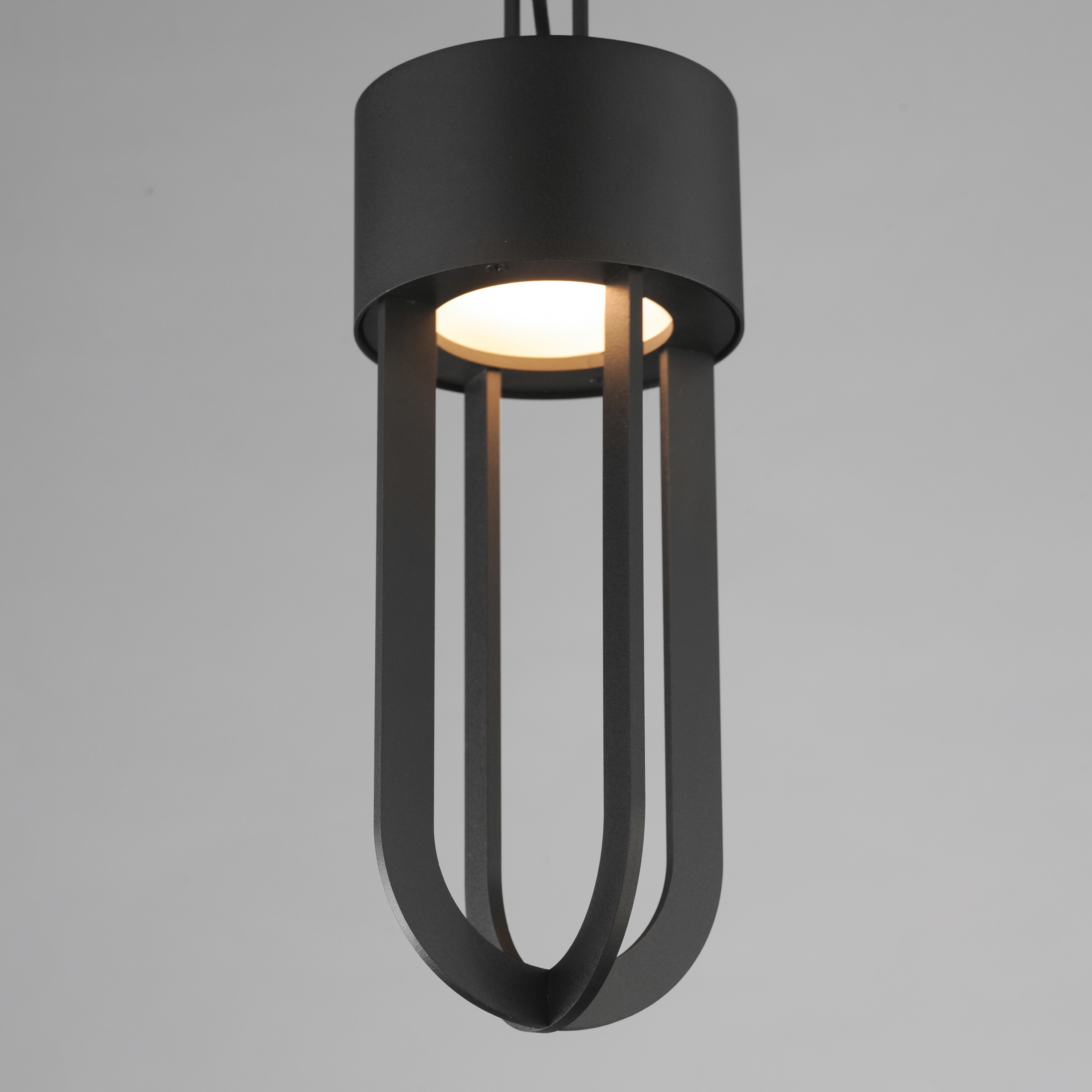

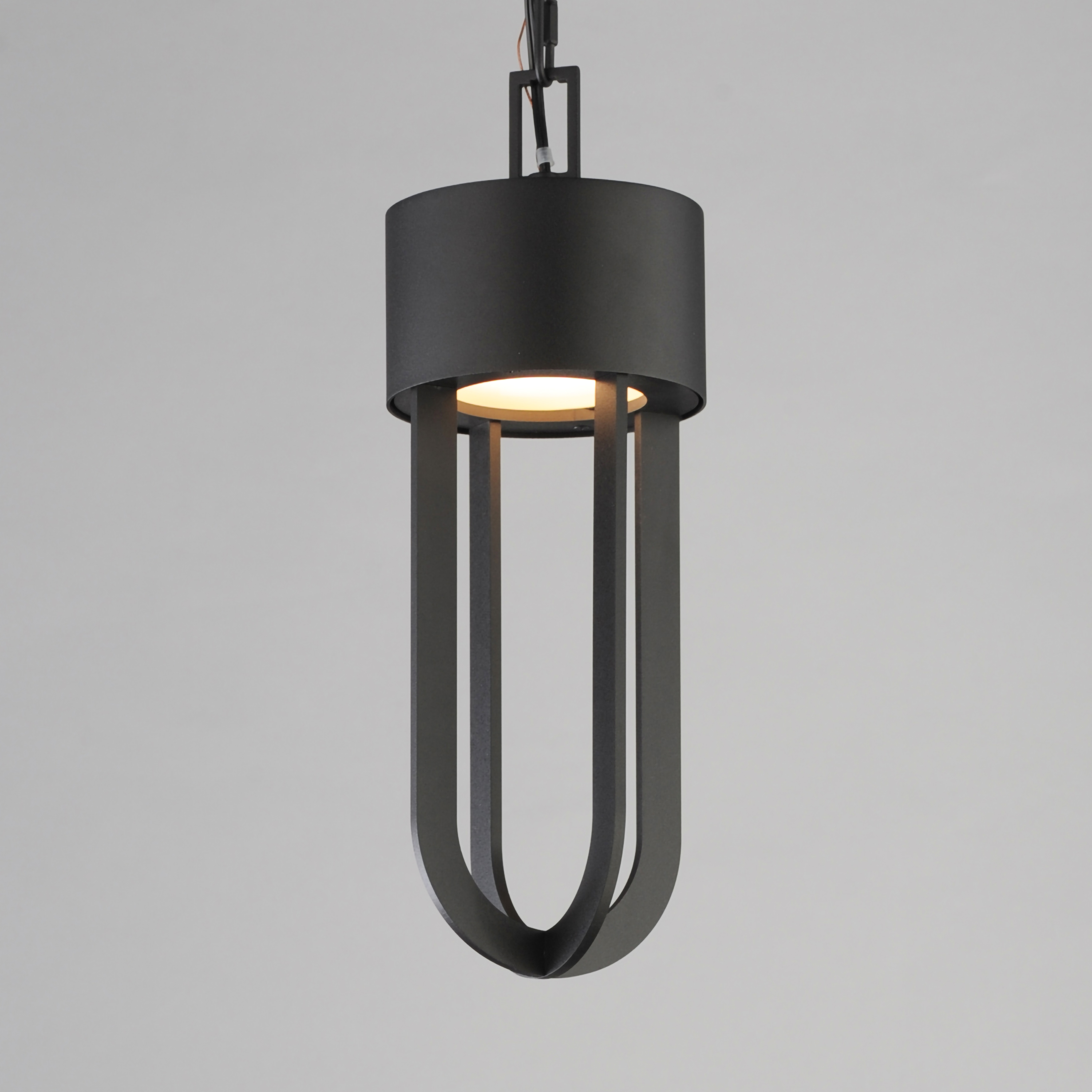

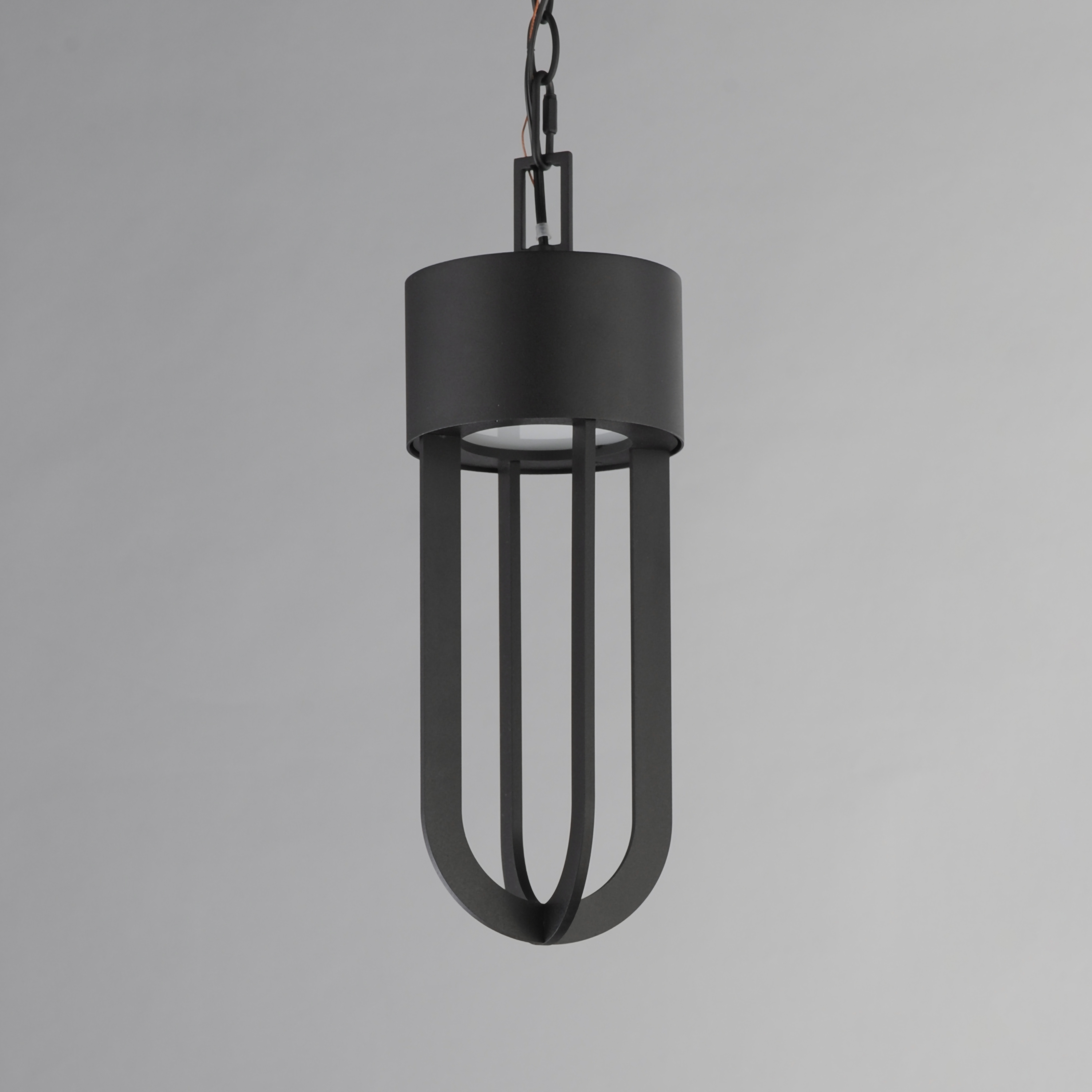

14 Outdoor LED Pendant
Quayside VX
Model: SM460683BK
Sizing: L5.5" x W5.5" x H16"
Finish: Black
Shade:
Price: $198.00
A bold modern design, the Quayside collection features intersecting aluminum frames that elegantly curve to meet at the base. Integrated cutting-edge LED technology provides ample downward lighting while maintaining Dark Sky compliance. Finished in a sleek Matte Black and crafted from Maxim's durable Vivex composite material, these fixtures are engineered to withstand the harshest climates. The collection includes a full range of outdoor lighting solutions, with multiple sconce sizes, a pendant, and a flush mount configuration to suit any exterior space.


OPTIONS


Quayside VX
Quayside VX
SM460683BK
14 Outdoor LED Pendant
Quayside VX
Lamping
Number of Bulbs: 1
Light Type: LED
Bulb Type: DC Integrated An average rating, in hours, indicating when 50% of a large group of lamps have failed, when operated at nominal lamp voltage and current; manufacturers use 3 hours per start for fluorescent lamps and 10 hours per start for HID lamps when performing lamp life testing procedures; every lamp type has a unique mortality curve that depicts its average rated life. For Photo-Optic specialty lamps, average rated life refers to the operating period after which on statistical average, 50% of the lamps will perform within their specified values.
Bulb Max Wattage: 12
Fixture Max Wattage: 12
Delivered Lumens: 630 A measurement of the power of light emitted from a source. The difference between LED lumen versus lumens from an incandescent or fluorescent source is that all of the lumen output is directed forward as opposed to a bulb where lumens come off the source in all directions. Lumens are lost on the back side of a bulb.
Color Temperature: 3000 K This is a measurement in Kelvin of the color of light a source produces. Higher color temperatures (5,000 K or more) are cool (blueish white) colors; lower color temperatures (2,700–3,000 K) are warm (yellowish white through red) colors.
Bulb(s): Integrated
CRI: 90
Dimmable: Y
Input Voltage: 120-277

Measurements
Width: 5.5"
Height: 16"
Length: 5.5"
Max Overall Height: 56.5"
Min Overall Height: 19.5"
Wire Length: 120"
Chain Length: 36"
Hanging Weight: 2.77 lb.
UPS Shippable: Yes Any box shipped via UPS that that is larger than 3 cubic feet in size will be charged shipping costs based on its dimensional weight rather than the actual weight of the package.
Canopy Width: 5"
Canopy Height: 1"
Canopy Length: 5"

Certifications/Other
UL Standard: Damp



Quayside VX
Quayside VX
Quayside VX 14 Outdoor LED Pendant
Quayside VX 14 Outdoor LED Pendant
Quayside VX 14 Outdoor LED Pendant
Quayside VX 14 Outdoor LED Pendant
Quayside VX


Downloads
Assembly Insturctions - English DOWNLOAD
Specification Sheet DOWNLOAD
IES Photometric DOWNLOAD
