Blok

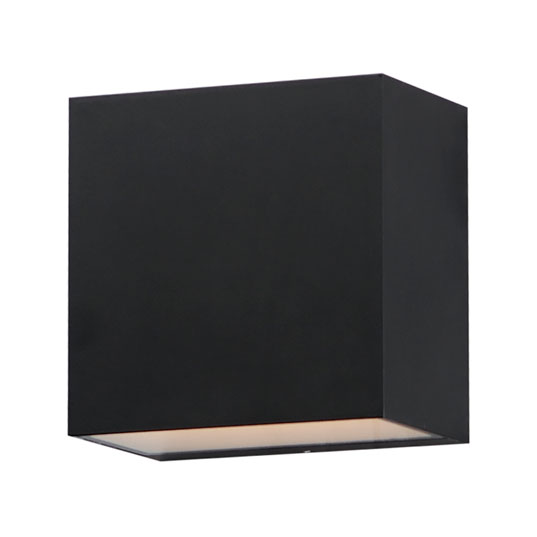

1-Light LED Outdoor Sconce
Blok
Model: SM253216BK
Sizing: W4.75" x H4.75"
Price: $124.00

The classic cube form has become a staple in modern lighting design. These products have been designed with minimal extension for ADA compliance. The smaller downlight size is designed for Night Sky applications, while both sizes may be utilized in corridor areas for commercial and hospitality applications. This product range is not only commercially qualified, but also reasonably priced, with IP classifications that enable install in both indoors and outdoor areas.  The high-powered LED light engine is low-voltage and comes with a range voltage driver, making it easier to fulfill a variety of site requirements.

2 Finishes Available


Blok
Blok
SM253216BK
1-Light LED Outdoor Sconce
Blok
Lamping
Number of Bulbs: 1

Light Type: LED

Bulb Type: PCB Integrated
An average rating, in hours, indicating when 50% of a large group of lamps have failed, when operated at nominal lamp voltage and current; manufacturers use 3 hours per start for fluorescent lamps and 10 hours per start for HID lamps when performing lamp life testing procedures; every lamp type has a unique mortality curve that depicts its average rated life. For Photo-Optic specialty lamps, average rated life refers to the operating period after which on statistical average, 50% of the lamps will perform within their specified values.
Bulb Max Wattage: 8

Fixture Max Wattage: 8

Install Up/Down: Down

Rated Life: 50,000 Hours
An average rating, in hours, indicating when 50% of a large group of lamps have failed, when operated at nominal lamp voltage and current; manufacturers use 3 hours per start for fluorescent lamps and 10 hours per start for HID lamps when performing lamp life testing procedures; every lamp type has a unique mortality curve that depicts its average rated life. For Photo-Optic specialty lamps, average rated life refers to the operating period after which on statistical average, 50% of the lamps will perform within their specified values.
Rated Lumens: 630
A measurement of the power of light emitted from a source. The difference between LED lumen versus lumens from an incandescent or fluorescent source is that all of the lumen output is directed forward as opposed to a bulb where lumens come off the source in all directions. Lumens are lost on the back side of a bulb.
Color Temperature: 3000 K
This is a measurement in Kelvin of the color of light a source produces. Higher color temperatures (5,000 K or more) are cool (blueish white) colors; lower color temperatures (2,700–3,000 K) are warm (yellowish white through red) colors.
Bulb(s): Integrated

CRI: 90

Input Voltage: 120-277

Measurements
Width: 4.75"

Height: 4.75"

Extension: 4"

HCO: 2.25"

BP Width: 4.75"

BP Height: 4.75"

Wire Length: 8"

Hanging Weight: 2.53 lb.

UPS Shippable: Yes
Any box shipped via UPS that that is larger than 3 cubic feet in size will be charged shipping costs based on its dimensional weight rather than the actual weight of the package.

Certifications/Other
UL Standard: Wet

ADA Compliant: Yes
Click for Additional Information on ADA
Dark Sky: Yes

Energy Star: Yes
Click for Additional Information on ENERGY STAR
Meet California Title 24 Requirements: Yes
Click for Additional Information on Title 24



Blok
Blok
Blok


Downloads
Assembly Insturctions - English Download PDF
Assembly Insturctions - French
Specification Sheet Download PDF
IES Photometric Download IES
Product Image Download JPG
Infograph Sheet Download Web
Download Rep
Convert Brochure
Diverse Brochure
Parts and Accessories View Parts and Accessories
Schematic Diagram
