Cubed

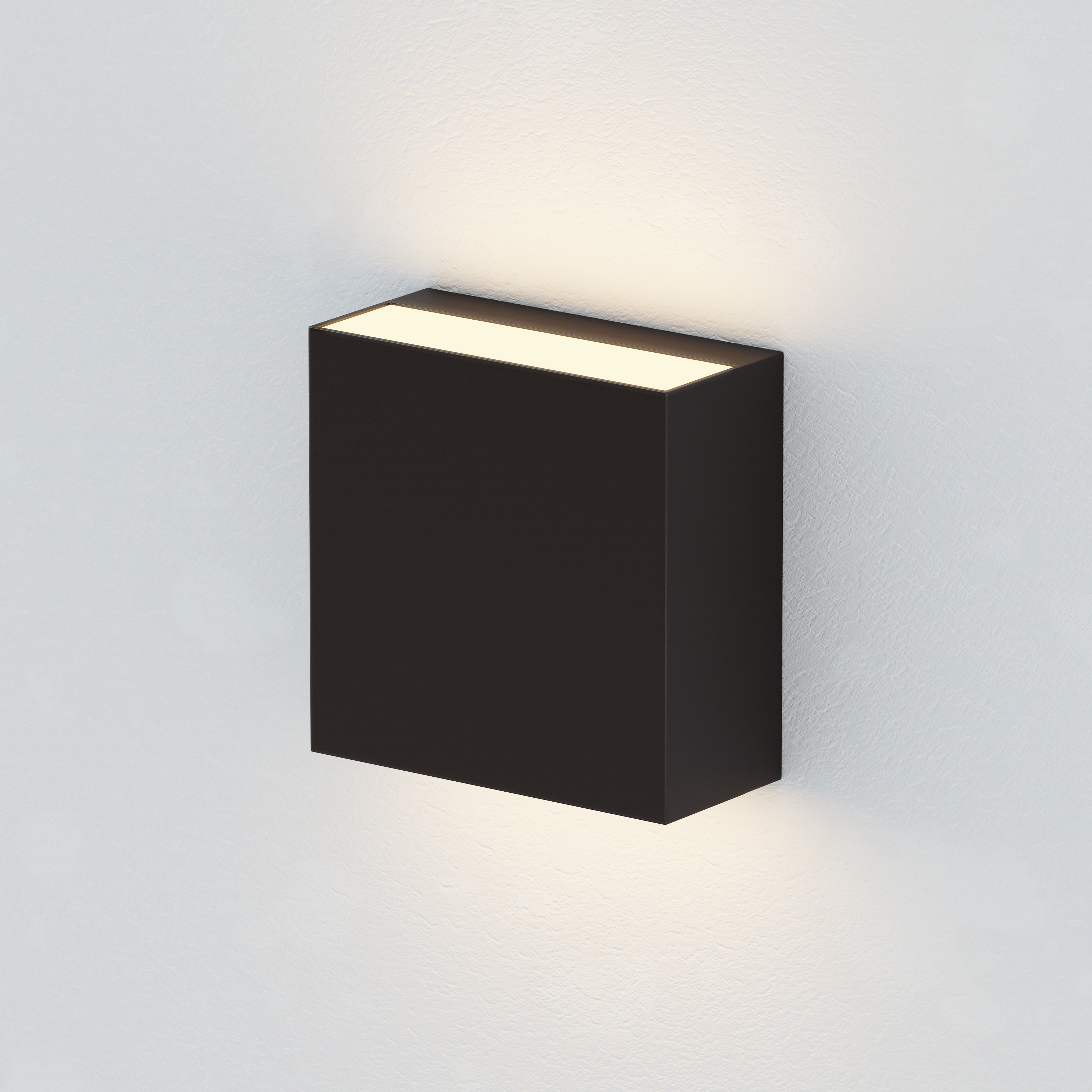

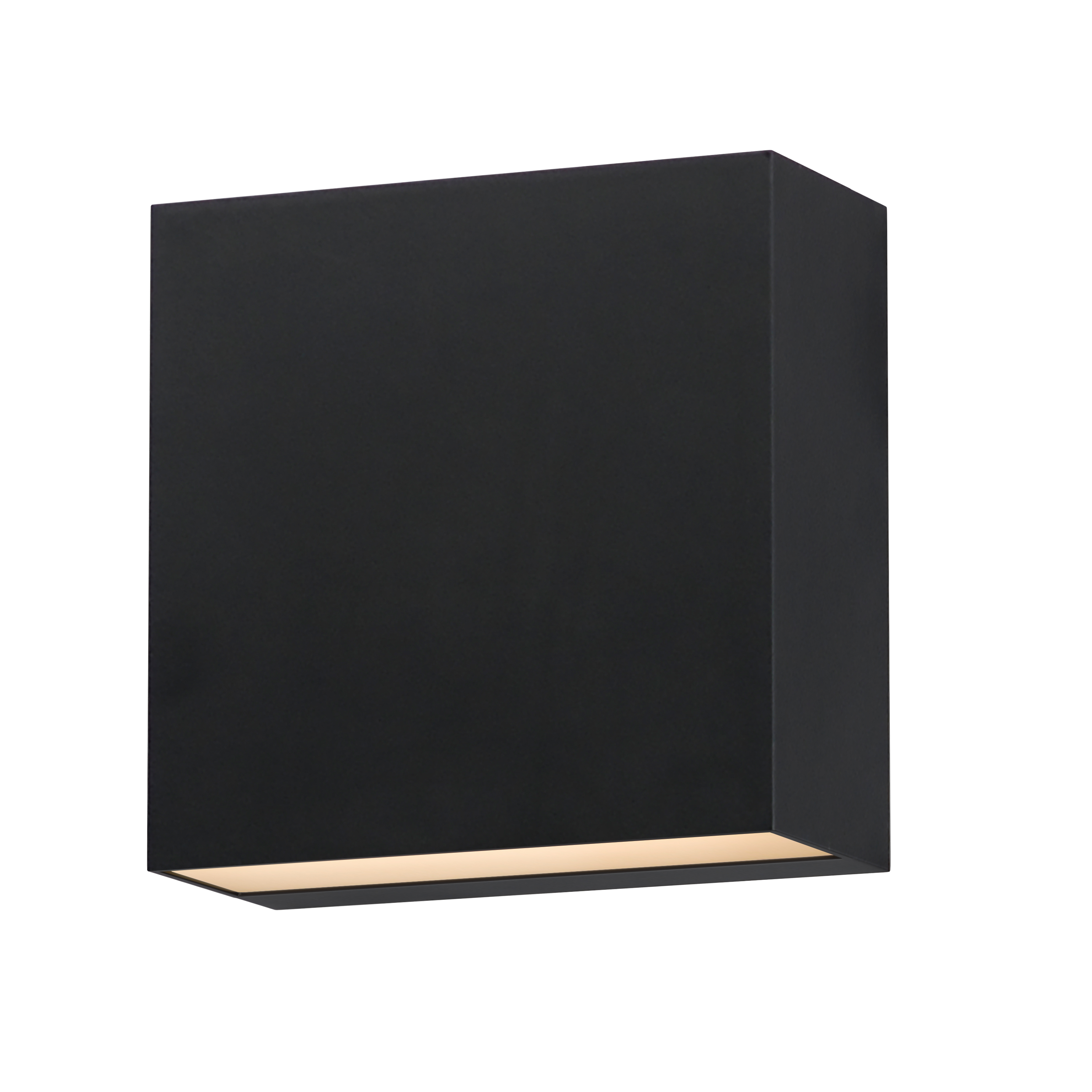

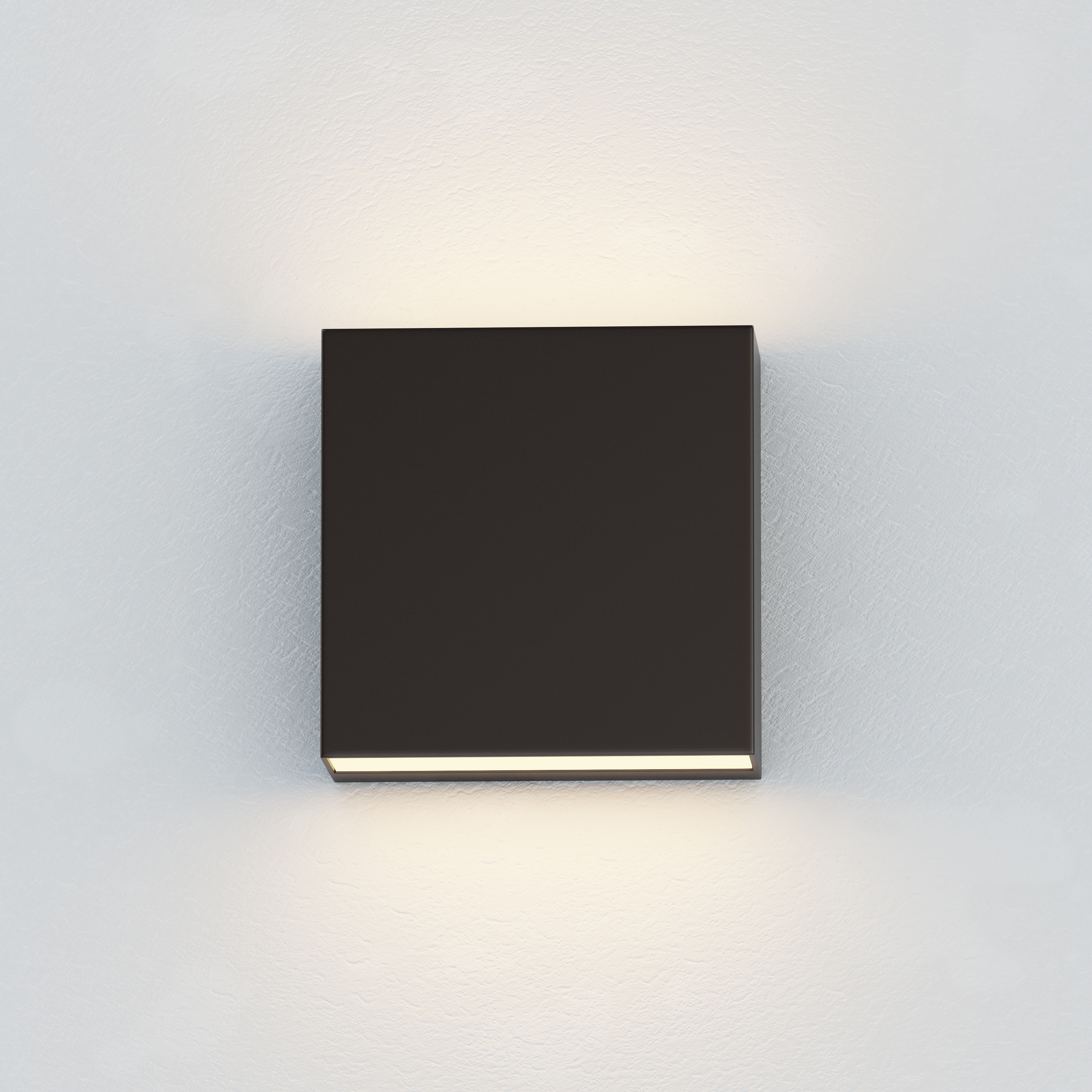

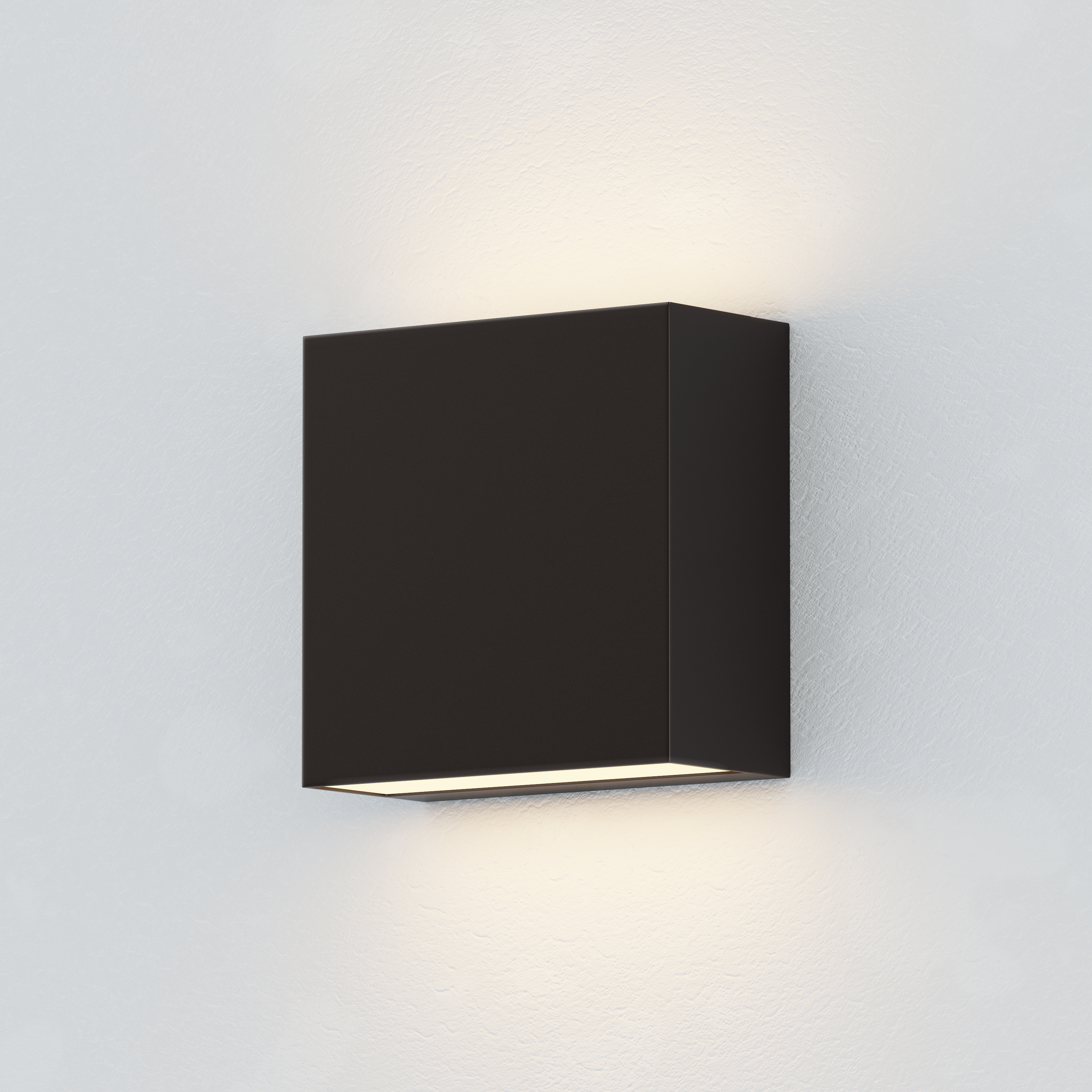

5.5 2-Light LED Outdoor Sconce
Cubed
Model: SM253224BK
Sizing: W5.5" x H5.5"
Price: $120.00

A staple in modern design, the square block form is the perfect minimalist accent to your home's interior or exterior elevations. The third iteration in this concept, the cubes are enabled with updated features that include range voltage input for both residential and commercial applications, an adjustable beam angle structure within the die cast housing allows the end user to set the light spread from either the top or bottom individually, and the sconces meet the dimensional extension compliant for ADA applications. Available in Black or Satin Aluminum finishes rated for outdoor, this modern design just got better.


4 Finishes Available


Cubed
SM253224BK
5.5 2-Light LED Outdoor Sconce
Cubed
Lamping
Number of Bulbs: 1

Light Type: LED

Bulb Type: PCB Integrated
An average rating, in hours, indicating when 50% of a large group of lamps have failed, when operated at nominal lamp voltage and current; manufacturers use 3 hours per start for fluorescent lamps and 10 hours per start for HID lamps when performing lamp life testing procedures; every lamp type has a unique mortality curve that depicts its average rated life. For Photo-Optic specialty lamps, average rated life refers to the operating period after which on statistical average, 50% of the lamps will perform within their specified values.
Bulb Max Wattage: 10

Fixture Max Wattage: 10

Install Up/Down: Adjustable

Rated Life: 50,000 Hours
An average rating, in hours, indicating when 50% of a large group of lamps have failed, when operated at nominal lamp voltage and current; manufacturers use 3 hours per start for fluorescent lamps and 10 hours per start for HID lamps when performing lamp life testing procedures; every lamp type has a unique mortality curve that depicts its average rated life. For Photo-Optic specialty lamps, average rated life refers to the operating period after which on statistical average, 50% of the lamps will perform within their specified values.
Delivered Lumens: 650
A measurement of the power of light emitted from a source. The difference between LED lumen versus lumens from an incandescent or fluorescent source is that all of the lumen output is directed forward as opposed to a bulb where lumens come off the source in all directions. Lumens are lost on the back side of a bulb.
Color Temperature: 3000 K
This is a measurement in Kelvin of the color of light a source produces. Higher color temperatures (5,000 K or more) are cool (blueish white) colors; lower color temperatures (2,700–3,000 K) are warm (yellowish white through red) colors.
Bulb(s): Integrated

CRI: 90

Dimmable: Y

Input Voltage: 120-277

Measurements
Width: 5.5"

Height: 5.5"

Extension: 2.5"

BP Width: 5.25"

BP Height: 4"

Wire Length: 8"

Hanging Weight: 1.75 lb.

UPS Shippable: Yes
Any box shipped via UPS that that is larger than 3 cubic feet in size will be charged shipping costs based on its dimensional weight rather than the actual weight of the package.

Certifications/Other
UL Standard: Wet

ADA Compliant: Yes
Click for Additional Information on ADA



Cubed
Cubed
Cubed 5.5 2-Light LED Outdoor Sconce
Cubed 5.5 2-Light LED Outdoor Sconce
Cubed 5.5 2-Light LED Outdoor Sconce
Cubed


Downloads
Assembly Insturctions - English DOWNLOAD
Specification Sheet DOWNLOAD
IES Photometric DOWNLOAD
Product Image
Infograph Sheet Download Web
Download Rep
Convert Brochure
Diverse Brochure
