Zenith LED E26

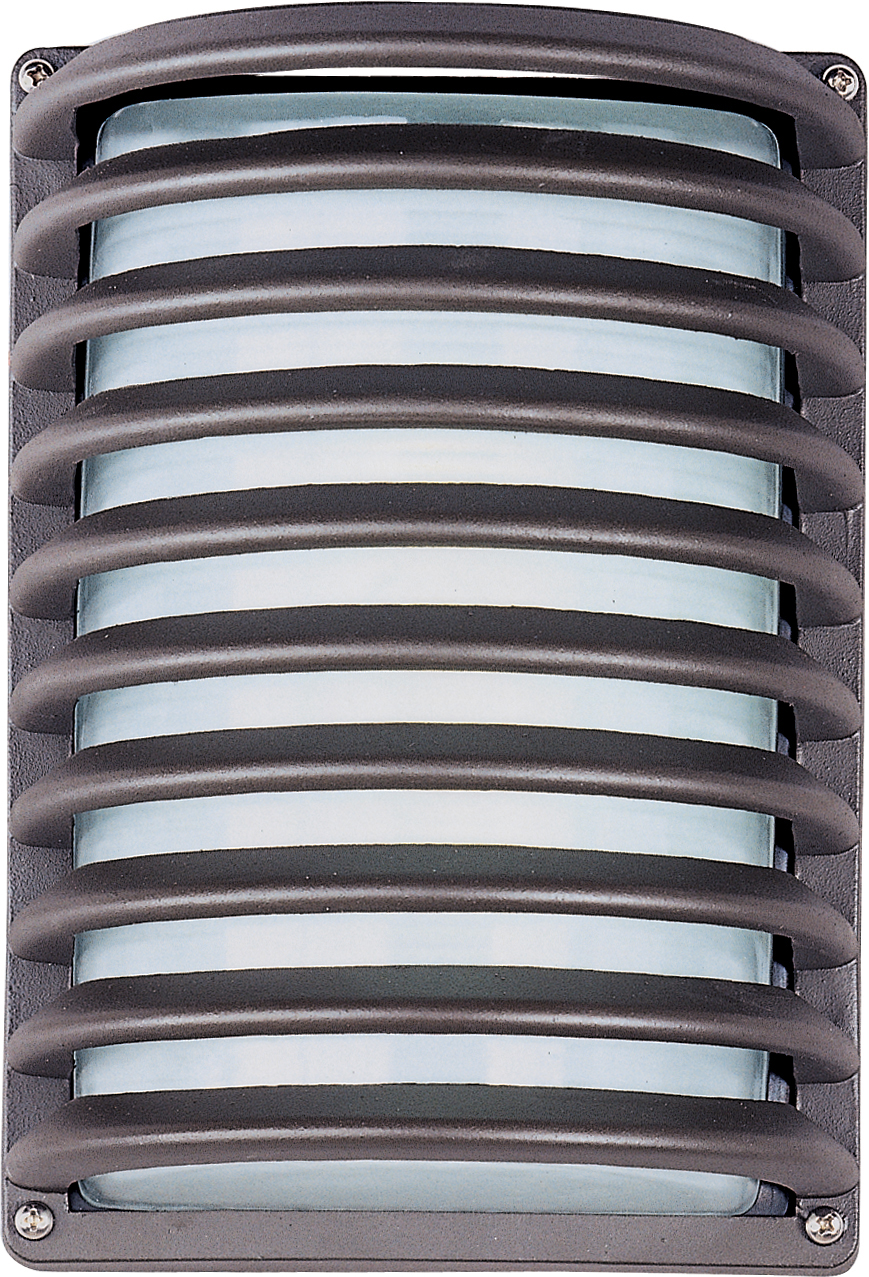

Zenith LED Wall Mount
Zenith LED E26
Model: SM566222WTABZ
Sizing: W7.25" x H12"
Finish: Architectural Bronze
Shade: White
Price: $154.00
These Contemporary, European-designed outdoor fixtures are a perfect combination of energy efficiency and durability. The Zenith collection features die-cast metal frames painted with a polyurethane powder coat, finished in Architectural Bronze. The durable white acrylic lens diffuses the light nicely. The light source gives the ultimate in energy saving and long life.


OPTIONS


Zenith LED E26
Zenith LED E26
SM566222WTABZ
Zenith LED Wall Mount
Zenith LED E26
Lamping
Number of Bulbs: 1
Light Type: LED
Bulb Type: E26 Medium An average rating, in hours, indicating when 50% of a large group of lamps have failed, when operated at nominal lamp voltage and current; manufacturers use 3 hours per start for fluorescent lamps and 10 hours per start for HID lamps when performing lamp life testing procedures; every lamp type has a unique mortality curve that depicts its average rated life. For Photo-Optic specialty lamps, average rated life refers to the operating period after which on statistical average, 50% of the lamps will perform within their specified values.
Bulb Max Wattage: 12
Fixture Max Wattage: 12
Rated Life: 25,000 Hours An average rating, in hours, indicating when 50% of a large group of lamps have failed, when operated at nominal lamp voltage and current; manufacturers use 3 hours per start for fluorescent lamps and 10 hours per start for HID lamps when performing lamp life testing procedures; every lamp type has a unique mortality curve that depicts its average rated life. For Photo-Optic specialty lamps, average rated life refers to the operating period after which on statistical average, 50% of the lamps will perform within their specified values.
Rated Lumens: 1355 A measurement of the power of light emitted from a source. The difference between LED lumen versus lumens from an incandescent or fluorescent source is that all of the lumen output is directed forward as opposed to a bulb where lumens come off the source in all directions. Lumens are lost on the back side of a bulb.
Color Temperature: 3000 K This is a measurement in Kelvin of the color of light a source produces. Higher color temperatures (5,000 K or more) are cool (blueish white) colors; lower color temperatures (2,700–3,000 K) are warm (yellowish white through red) colors.
Bulb(s): Included
CRI: 90+
Input Voltage: 120

Measurements
Width: 7.25"
Height: 12"
Extension: 3.5"
HCO: 6"
BP Width: 7"
BP Height: 9.75"
Hanging Weight: 3.9 lb.
UPS Shippable: Yes Any box shipped via UPS that that is larger than 3 cubic feet in size will be charged shipping costs based on its dimensional weight rather than the actual weight of the package.

Certifications/Other
UL Standard: Wet
Dark Sky: N
Energy Star: No Click for Additional Information on ENERGY STAR
Meet California Title 24 Requirements: JA8 Bulb In Click for Additional Information on Title 24



SM566222
Zenith LED E26
Zenith LED E26
Zenith LED E26


Downloads
Assembly Insturctions - English DOWNLOAD
Specification Sheet DOWNLOAD
IES Photometric DOWNLOAD
Product Image
Infograph Sheet Download Web
Download Rep
Convert Brochure
Diverse Brochure
Parts and Accessories
Schematic Diagram
