Home > Collections > Kinetic LED > Kinetic LED 10-Light Linear Pendant
Kinetic LED
10-Light Linear Pendant
Kinetic LED
Model: SM369698CLDSN
Sizing: L49.5" x W17.5" x H14.25"
Finish: Dark Satin Nickel
Shade: Clear
Price: $1,998.00
Discontinued

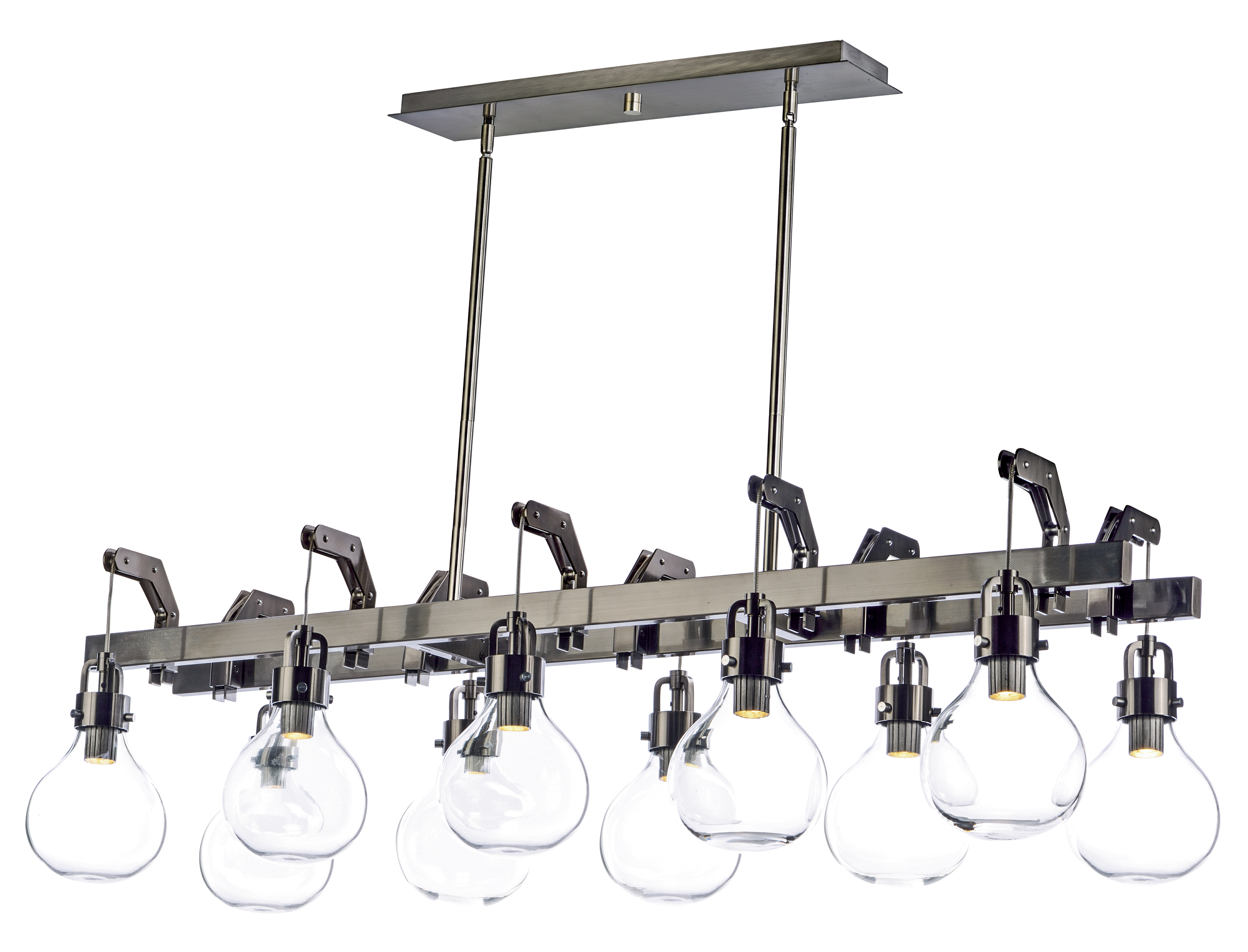

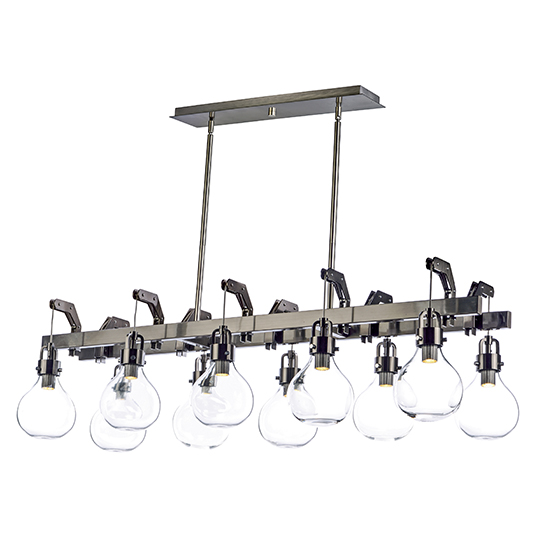

Contemporary Industrial design is met with the Kinetic series transforming mechanical parts into beautiful metal components finished in Dark Satin Nickel. Wire cord is run along a truss like structure separated by transformer-like castings. Large Clear glass globes are suspended from brackets with recessed LED illumination coming from decorative heat sinks.


OPTIONS


Kinetic LED
Kinetic LED
SM369698CLDSN
10-Light Linear Pendant
Kinetic LED
Lamping
Number of Bulbs: 10
Light Type: LED
Bulb Type: AC Integrated An average rating, in hours, indicating when 50% of a large group of lamps have failed, when operated at nominal lamp voltage and current; manufacturers use 3 hours per start for fluorescent lamps and 10 hours per start for HID lamps when performing lamp life testing procedures; every lamp type has a unique mortality curve that depicts its average rated life. For Photo-Optic specialty lamps, average rated life refers to the operating period after which on statistical average, 50% of the lamps will perform within their specified values.
Bulb Max Wattage: 6
Fixture Max Wattage: 60
Rated Lumens: 5600 A measurement of the power of light emitted from a source. The difference between LED lumen versus lumens from an incandescent or fluorescent source is that all of the lumen output is directed forward as opposed to a bulb where lumens come off the source in all directions. Lumens are lost on the back side of a bulb.
Color Temperature: 3000 K This is a measurement in Kelvin of the color of light a source produces. Higher color temperatures (5,000 K or more) are cool (blueish white) colors; lower color temperatures (2,700–3,000 K) are warm (yellowish white through red) colors.
Bulb(s): Integrated
CRI: 90+
Dimmable: Triac CL
Input Voltage: 120

Measurements
Width: 17.5"
Height: 14.25"
Length: 49.5"
Max Overall Height: 57"
Min Overall Height: 15"
Wire Length: 120"
Hanging Weight: 44 lb.
Adjustable: Yes
UPS Shippable: Yes Any box shipped via UPS that that is larger than 3 cubic feet in size will be charged shipping costs based on its dimensional weight rather than the actual weight of the package.
Canopy Width: 5"
Canopy Height: 0.75"
Canopy Length: 23.5"

Certifications/Other
UL Standard: Dry
Dark Sky: N
Energy Star: No Click for Additional Information on ENERGY STAR
Meet California Title 24 Requirements: N Click for Additional Information on Title 24



SM369698
Kinetic LED
Kinetic LED
Kinetic LED


Downloads
Specification Sheet DOWNLOAD
Product Image
Convert Brochure
Diverse Brochure
Parts and Accessories
Schematic Diagram
